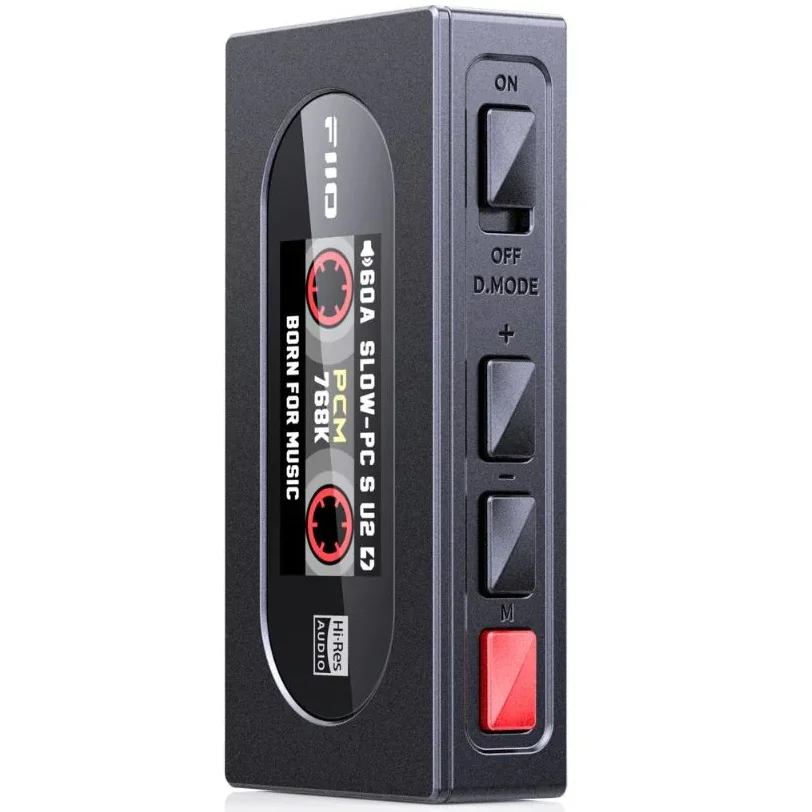

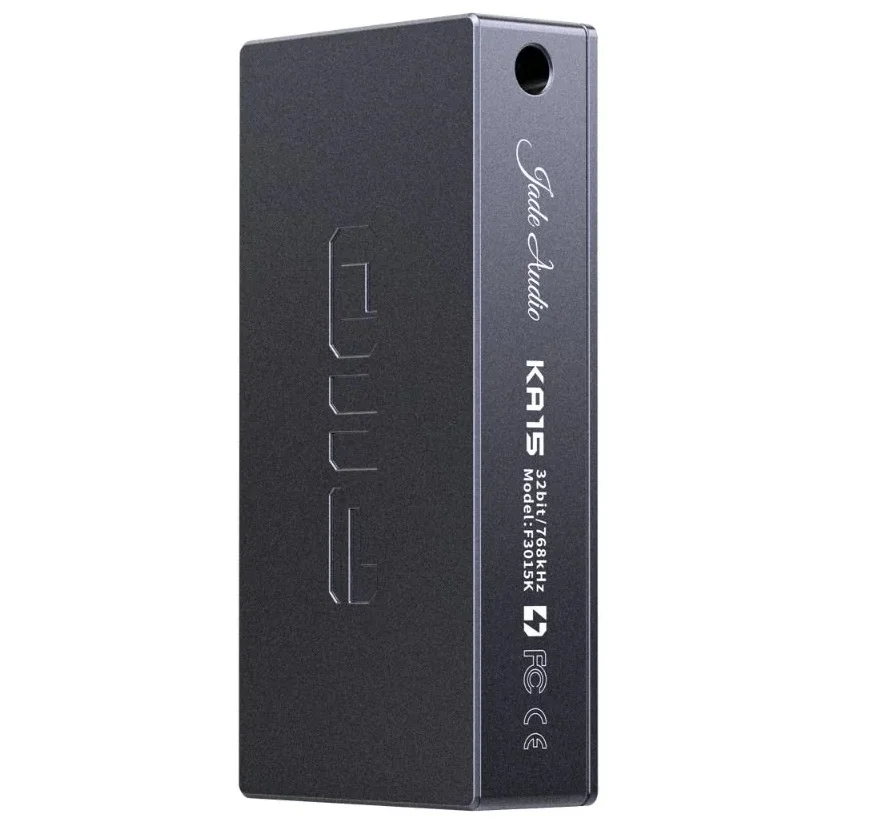

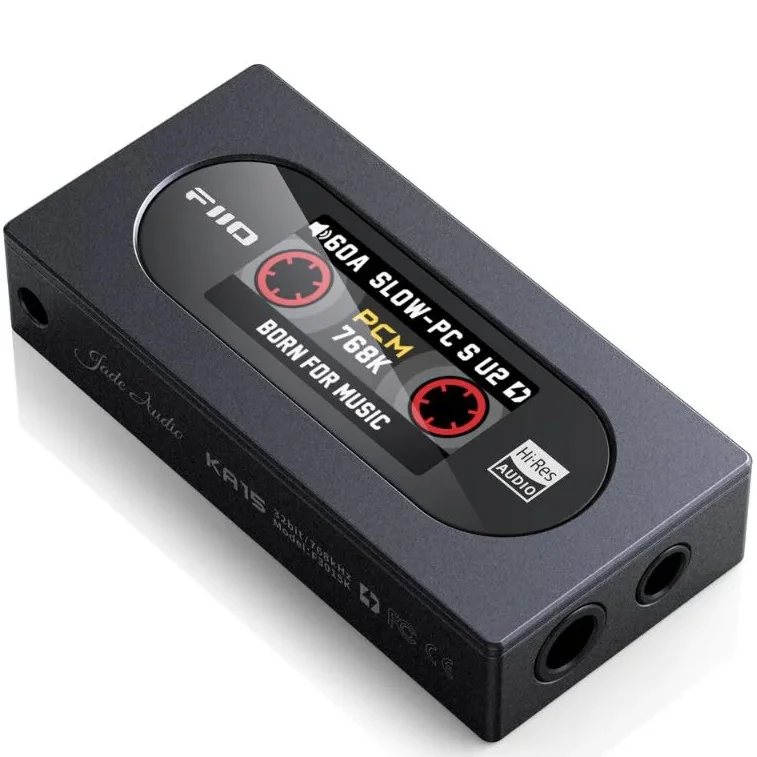

FiiO KA15 Type-C to 3.5mm/4.4mm Balanced Coaxial Interface, Portable USB DAC & Headphone Amplifier Adapter - Midnight Black
- High-end built-in DSP that supports ten bands of high-precision lossless PEQ adjustment.
- High-performance, low-power processor and features professional-grade, high-precision chips.
- Equipped with dual flagship DACs, the CS43198, along with dual high-performance op-amps, the SGM8262.
- Supports audio specifications up to 768kHz/32-bit and DSD256
Product Availability | Available (current model) |
Product Type | DAC (Digital-Analog Converter), Amplifier (Headphone), Portable Amplifier & DAC |
Style/Type | Portable |
Features | Line-in |
Connectivity | Fully Wired |
DAC | 2 x Cirrus Logic CS43198 (Dual) |
Op-Amp / Amplifier | 2 x SG Micro SGM8262 |
Power Amplification Type | Solid State |
Bluetooth Version | - N.A - |
Sampling / Bitrate | 768K/32bit, DSD64/128/256, 384K/32bit (coaxial) |
Frequency Response (Hz) | 20Hz~20kHz, damping ≤0.1dB 20Hz~50kHz, damping ≤0.1dB |
Signal-to-Noise Ratio (SNR) | ≥ 122dB (32Ω, A-weighted) |
Total Harmonic Distortion (THD) | 0.00045% (0dB, 32Ω) |
Total Output Power [RMS] (mW / W) | L+R≥510mW+510mW (16Ω) L+R≥560mW+560mW (32Ω) L+R≥78mW+78mW (300Ω) |
Input Connectivity Options | USB Type-C (USB-C) [Data/Audio Signal] |
Output Connectivity Options | Coaxial (SPDIF), 3.5mm Stereo, 4.4mm (5-Pole) [Balanced] |
Driveability (Output Impedance) (Ω) | PO: 16~150Ω; BAL: 16~300Ω |
Colour | Black |
Product Dimensions | About 52 x 25 x 11mm |
Product Weight (g) | About 21g |
Warranty | 1 year warranty (local) |
Package Contents |
