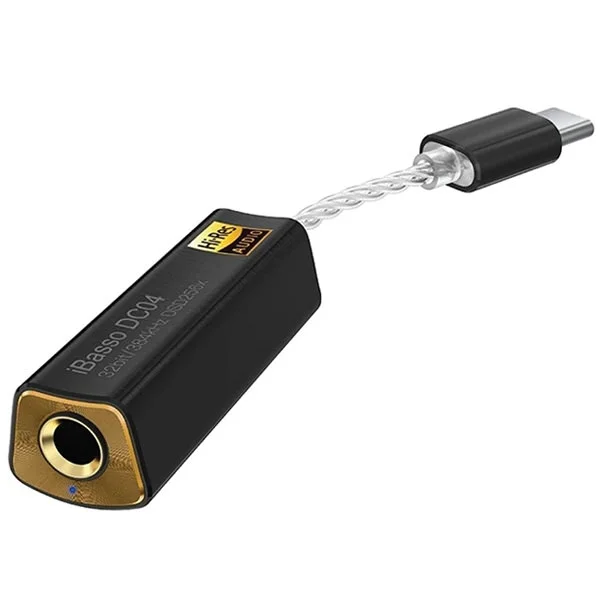

iBasso DC04 Type-C to 4.4mm Balanced USB DAC & Amplifier Cable Dongle - Black

iBasso DC04 2xCS43131 DSD Android USB Type-C to 4.4mm Headphone Amplifier Decode Cable

Description

DC04, the second-generation decoder amplifier, dual DAC true balanced decoding amplifier cable

Double CS43131 decoder chip

Bottom noise < 0.9μV, almost inaudible

THD + N < 0.00032%

32 Ω @ 195 mw

4.4mm balanced interface

Dual DAC balanced decoding amp cable opens a new era of sound quality for mobile phones

DC04 uses two high-performance HiFi decoding chips CS43131 to build a 4-channel DAC true balanced output line, which can significantly improve the resolution and channel separation, and present rich sound details. Cirrus Logic's next generation CS43131 with MasterHIFI™ technology has great potential and sweet and pleasant sound. DC04 double DAC design, double material, to ensure the second generation of decoder cable with high quality sound.

True gold is not afraid of fire, hard power is not afraid of PK

Indicators are not the only way to verify sound quality, but they do tell you a lot about the quality of a product's design.

Signal-to-noise ratio: 133 dB, bottom noise < 0.9μV, single-ended thrust 195mW @ 32Ω, THD + N < 0.00032% (-110dB), output impedance 0.12Ω.

The above are AP measurement indicators, stand out in the decoder cable products!

Based on super group index, adjust the charming voice

The core index of DC04 audio is superior to others, with a signal-to-noise ratio of 133dB and THD+N reaching 0.00032%, leaving the similar products far behind. Even compared to high-end HIFI players, it does not fall behind. Based on the outstanding indicators, the DC04 has been tuned hundreds of times to produce an amazing sound.

The background noise reaches the level of Nano volt, approaches zero, and is clean and transparent

In AP practice, DC04 bottom noise small than 0.9μV(900nV), be ahead of the similar kind products. The outstanding bottom noise control allows the DC04 to maintain a clean sound base and immerse listeners in the music.

Japan Pentaconn original 4.4mm interface, high-quality interface, achieve good audiophile sound On the DC04, we adopted the original high-quality 4.4mm balanced interface from Japan Pentaconn. The price is high, but it has excellent sound effects, reliable stability and longer service life.

4-channel DAC true balanced output, 195mW@32Ω, even more powerful

Thanks to DC04's internal 4-channel DAC true balanced output line, the output power is more than 1.5 times that of DC01 under a 32Ω load, reaching an astonishing 195mW, and even hard-to-push in-ear headphones can do well. Under a load of 300Ω, the maximum output level is as high as 4Vrms, which is more outstanding than some mainstream players, and it is also handy for large impedance headphones.

Do not miss every detail, the use of a satisfactory experience

The metal case of the DC04 adopts a wiredrawing process, with a delicate look and attractive touch, comparable to high-end HIFI players. Select 4 strands copper-plated silver audiophile cable, bring you a more comfortable experience.

From Android phones to computers, it can meet the needs of all scenarios

DC04 adopts type-C interface and uses standard UAC2.0 sound card chip, which is not only compatible with most Android phones and tablets in the market, but also can connect to Apple /Windows computers through the C-A adapter, easily realizing external decoding. Plug and play, get up anytime, anywhere.

Provide exclusive APK software, realize 64 level hardware volume adjustment

Mobile phones usually use software algorithms to adjust the volume, which is only about 10 levels in general. The volume range of each level varies greatly, making it difficult to provide fine adjustment. The output level of DC04 is as high as 4Vrms, which can be very loud even if the phone is only 1. To this end, we wrote an APK that supports UAC2.0 volume regulation, which realizes 64 level control volume and makes the transition more delicate.

Operation

DC04 can be plug and play on Android devices running Android above Android5.1 (due to the impact of the device system or hardware, there may be compatibility differences on very few Android devices).But with the DC04 output level up to 4Vms, even volume 1 can be very loud on some Android devices. Therefore, it is recommended that you install Android APK-iBasso UAC for finer volume control. For some types of Android devices, you may need to manually turn on the OGT function in the system settings. When used with a mobile phone, it supports up to PCM32Bit/384kHz and Native DSD256 output.
