RAAL 1995 IMMANIS True Triple Ribbon Open-Back Over-Ear Headphone w/ Ribbon Current-Drive Interface/Stand & Cables Set
- Next-gen Triple True-Ribbon driver headphones
- Circumaural, open-back framework
- Boasts an enormous soundstage
- Constructed with glass fibre, Aluminum and finished with American Walnut wood
Important Notice about Female XLR 4-pin Cable Connector
Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R).
- Headphones: IMMANIS (triple-ribbon)
- Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (8 Ohm & Viva by request)
- Cable (Amplifier to RCD Interface): RCD-XLR (XLR4 to XLR4) 1.5m
- Cable (Headphones to RCD Interface): STAR-8 MkII Pure Silver 1.8m
- Case: Anodized Aluminum / Plush Lined

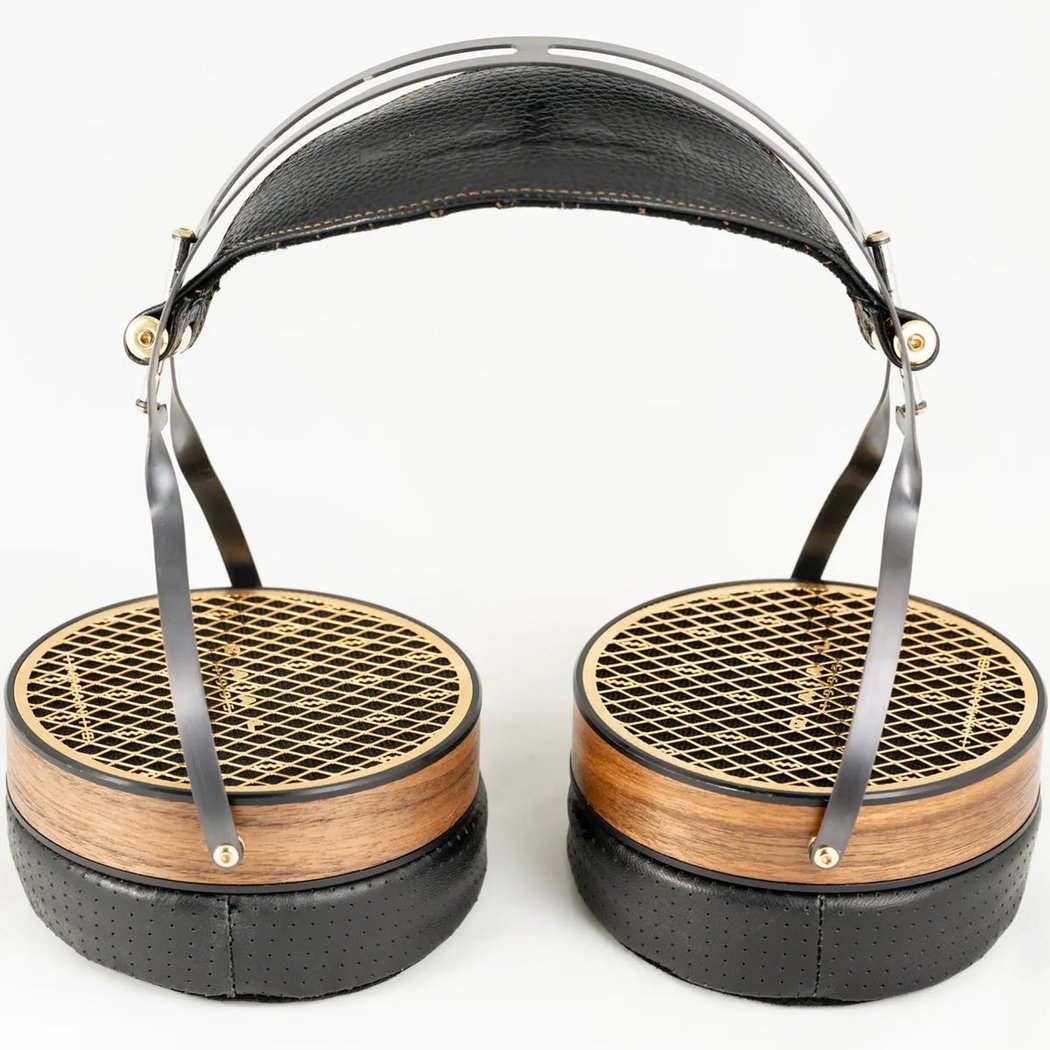

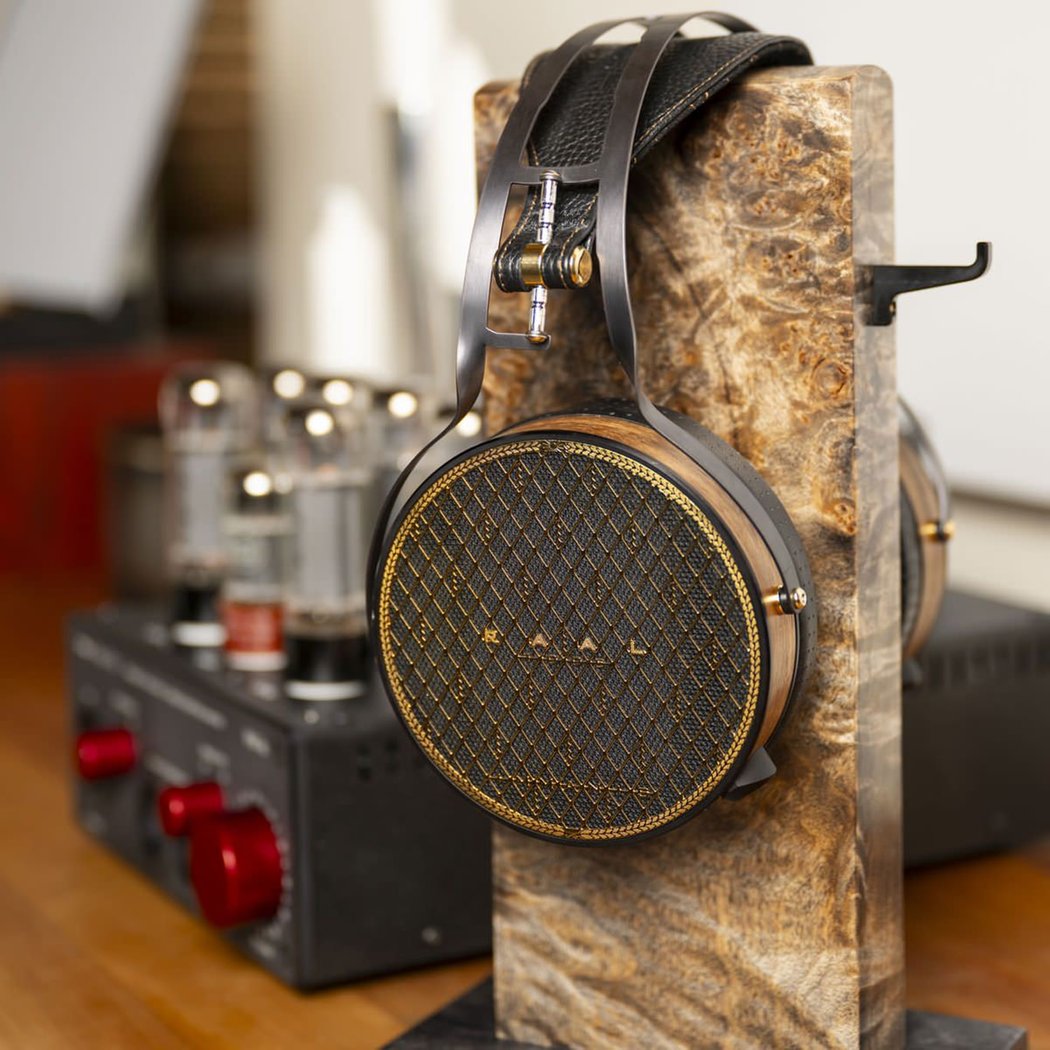

RAAL 1995 Immanis
Upon its release February 2024, Immanis quickly caught the attention of headphone aficionados everywhere. It only takes a few minutes of listening to discover why this triple-ribbon design is so talked about. The soundstage is enormous. It’s fast. It’s transparent. It’s lively and exciting.
Superior Craftsmanship

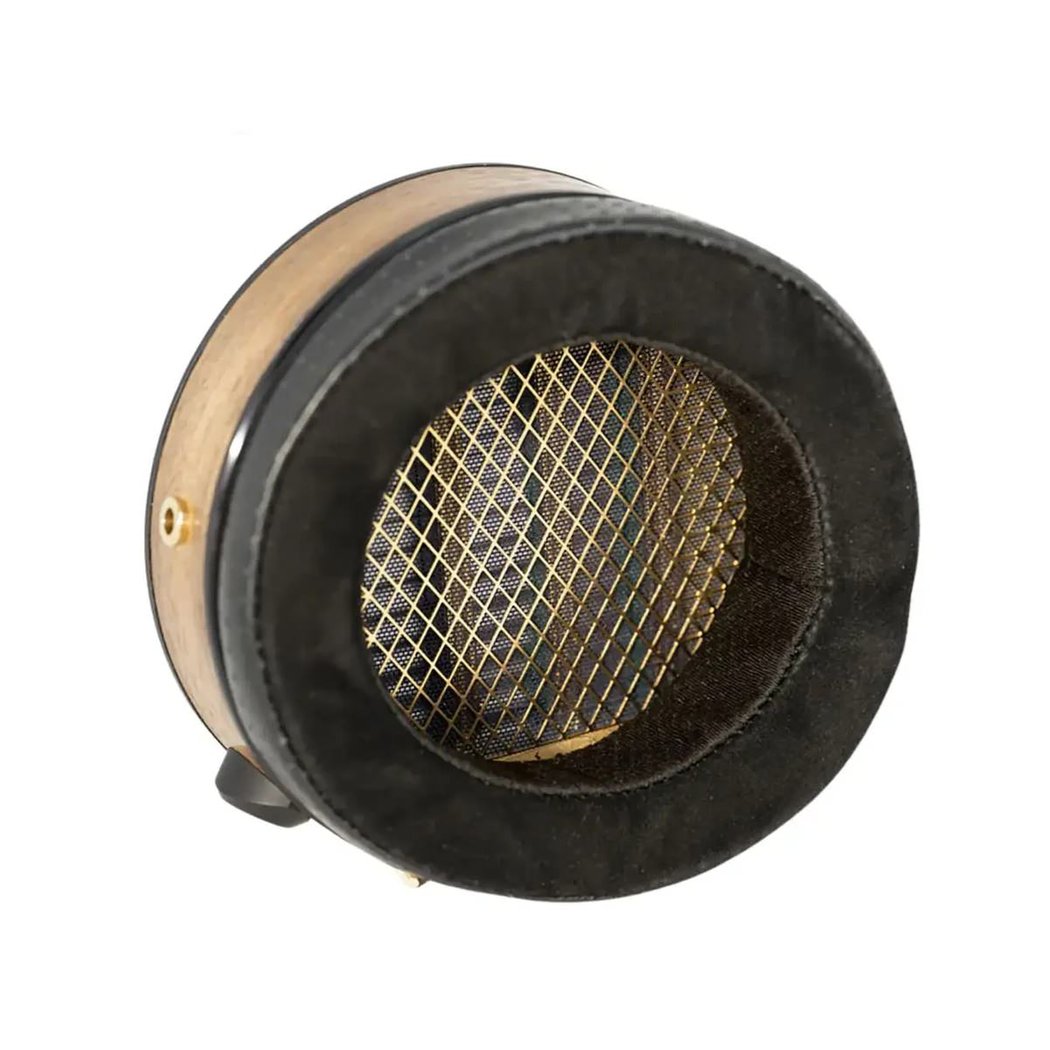

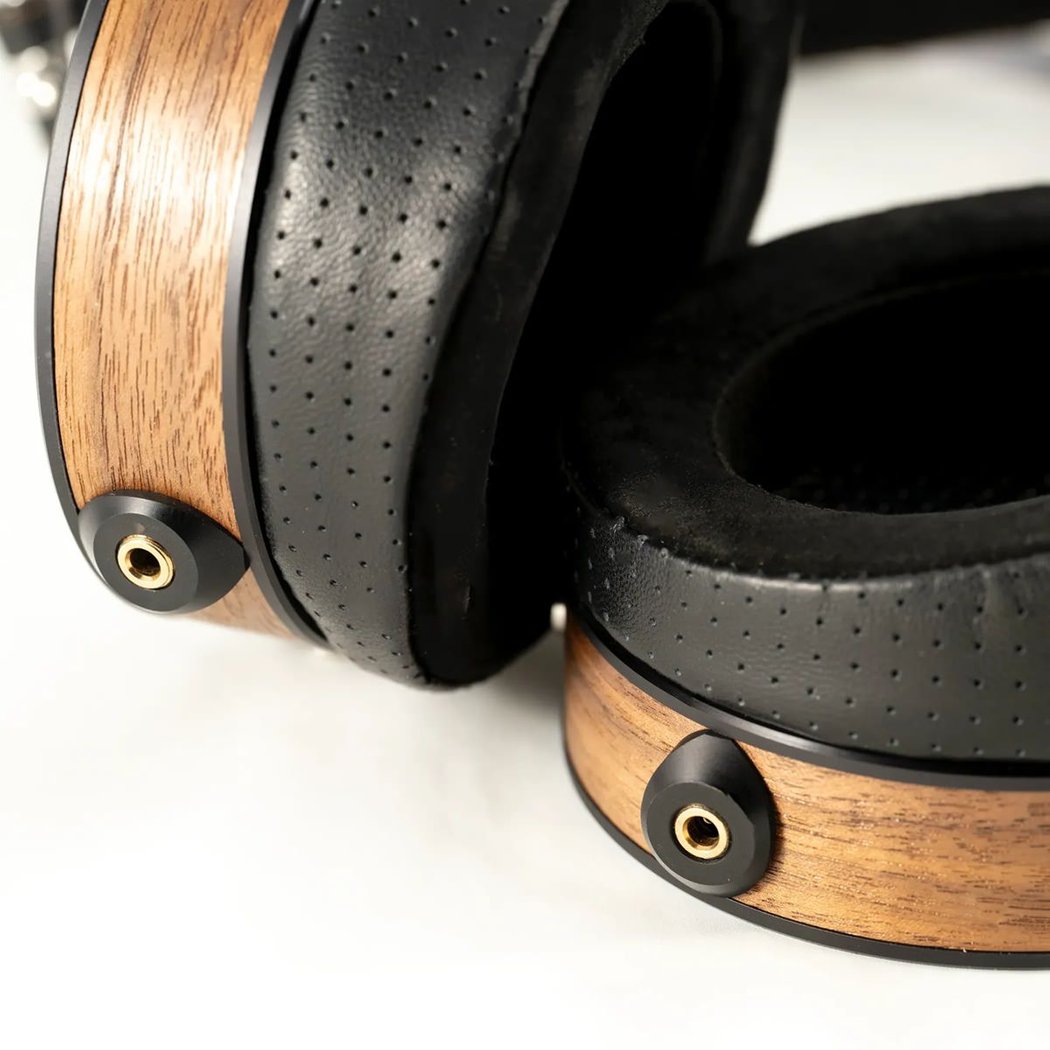

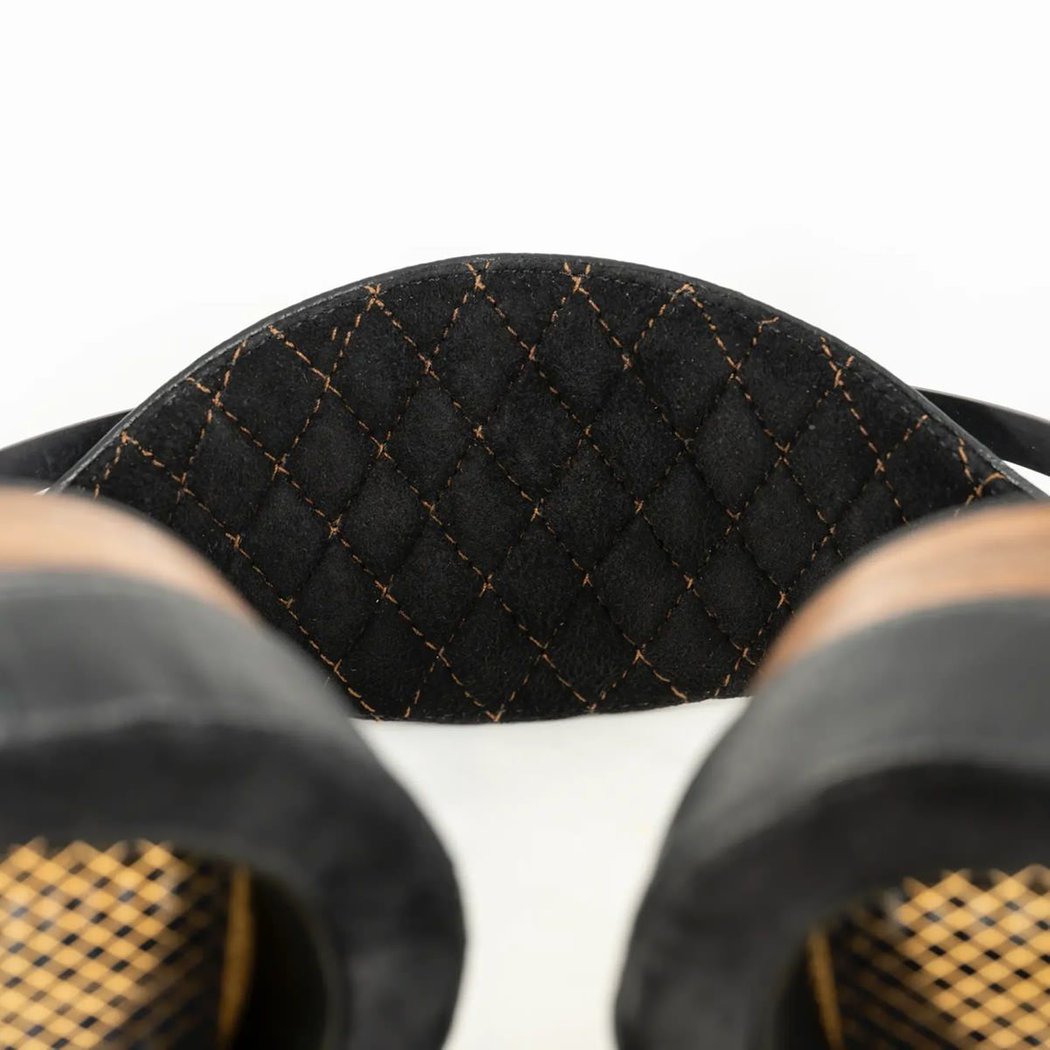

Immanis is designed to provide a luxurious and comfortable listening experience. The memory foam ear pads are covered with lamb suede on the inside and perforated leather on the outside. The round ear pad opening is thoughtfully designed to comfortably accommodate larger ears. For connectivity, the headphones utilize standard 3.5 mm TRRS sockets, offering wide compatibility with high-end cables and audio sources.

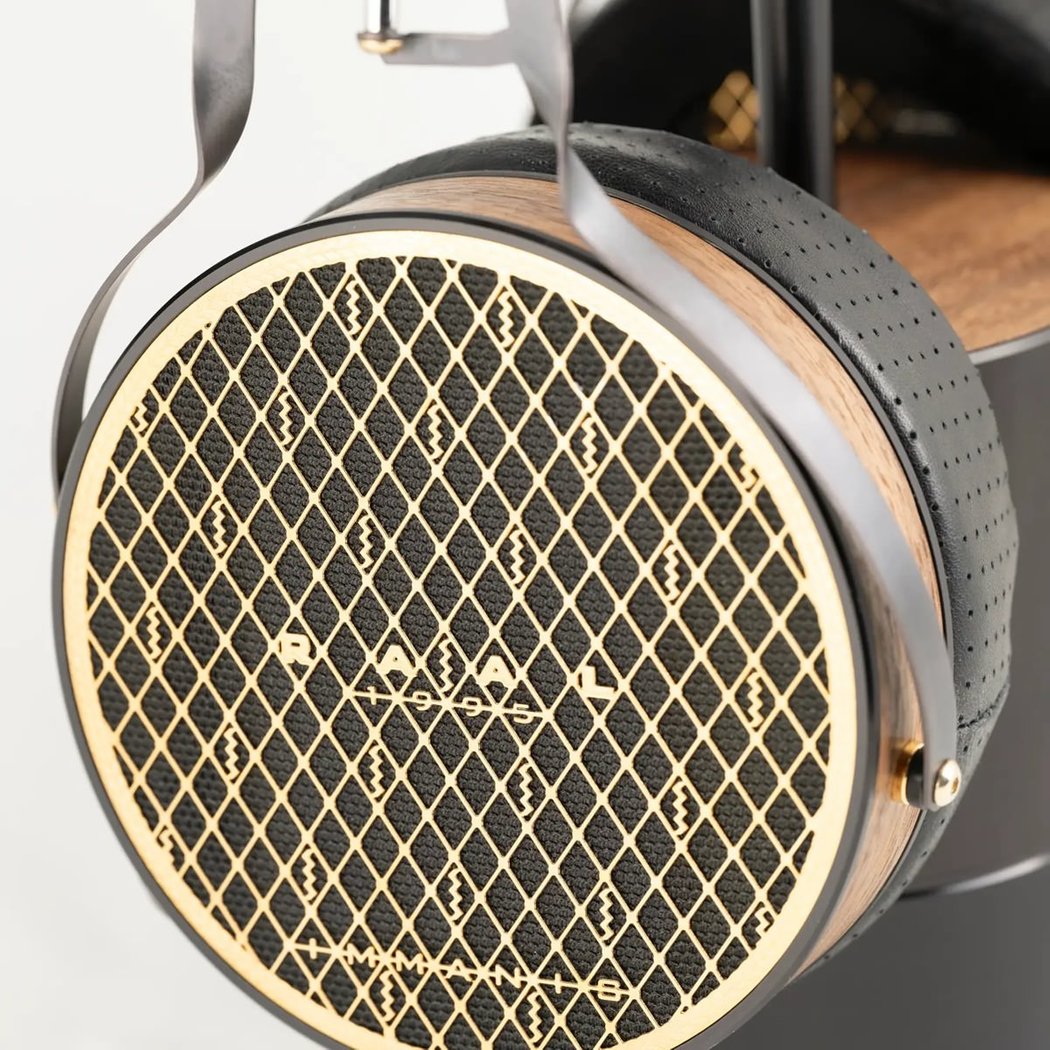

The three Immanis ribbons have a combined surface area of 25.2 cm², a shell diameter of 11 cm and an impedance of 0.057Ω (0.29Ω with the 1.8 m long Star-8 MkII headphone cable). The maximum sound pressure level increases by 3 dB, the round ear cup opening increases to 74 mm, and the weight to 610 g. Adding a touch of elegance, the external grill now features a refined gold-plated finish.
In comparison, the Magna ribbons have almost 29% more surface area than the CA-1 driver, while the Immanis ribbons are almost twice the surface area of the CA-1 and 1.45 times larger than the SR1. Between them, Immanis offers 50% more surface area than Magna and has a larger front chamber.

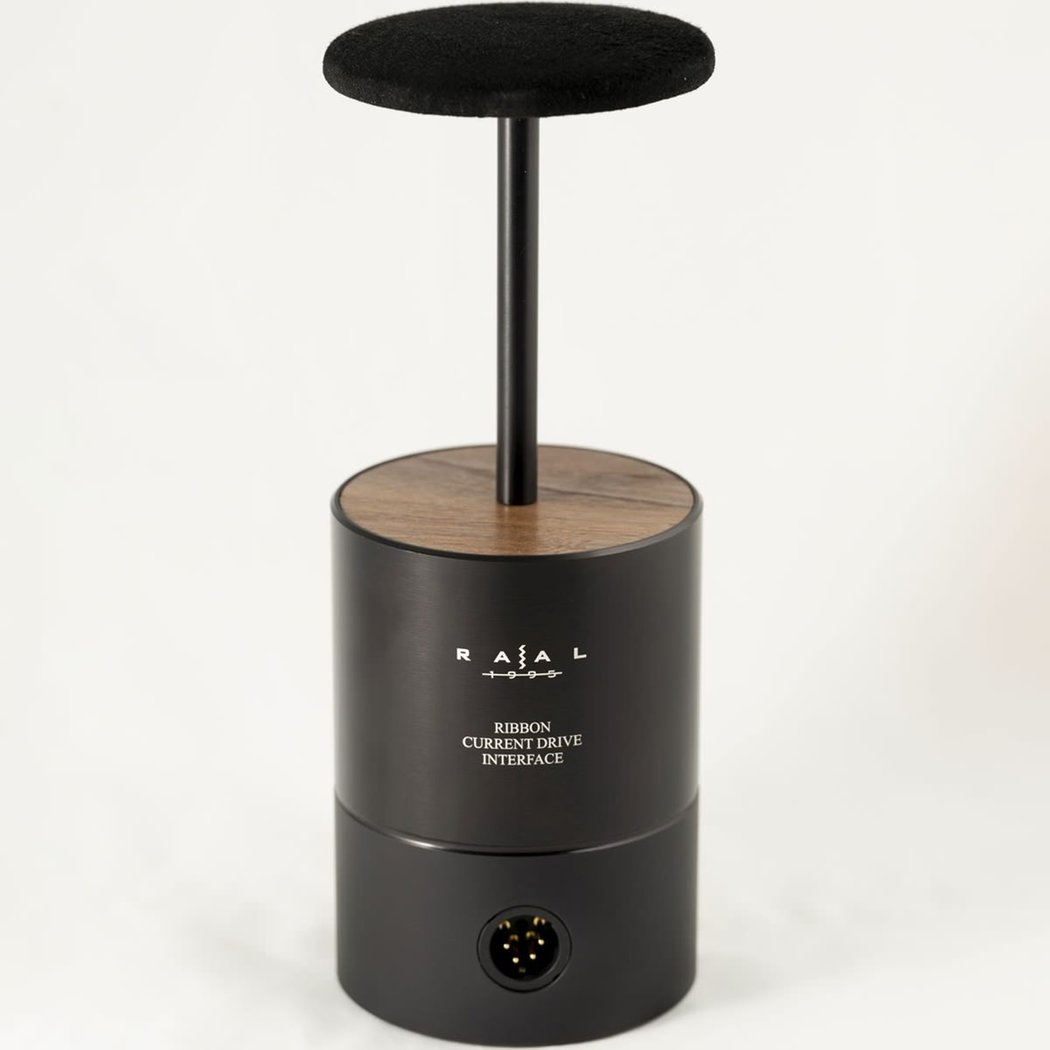

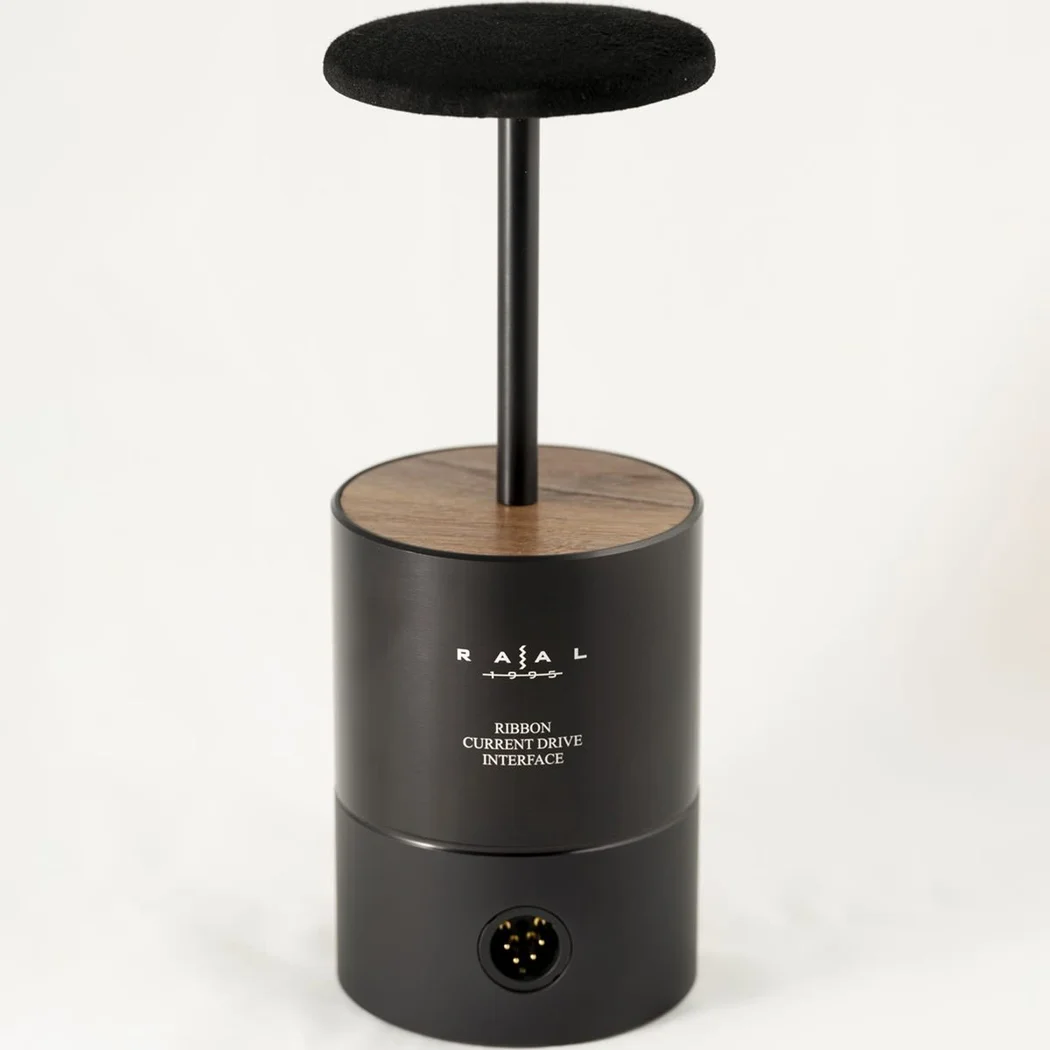

Ribbon Current Drive Interface

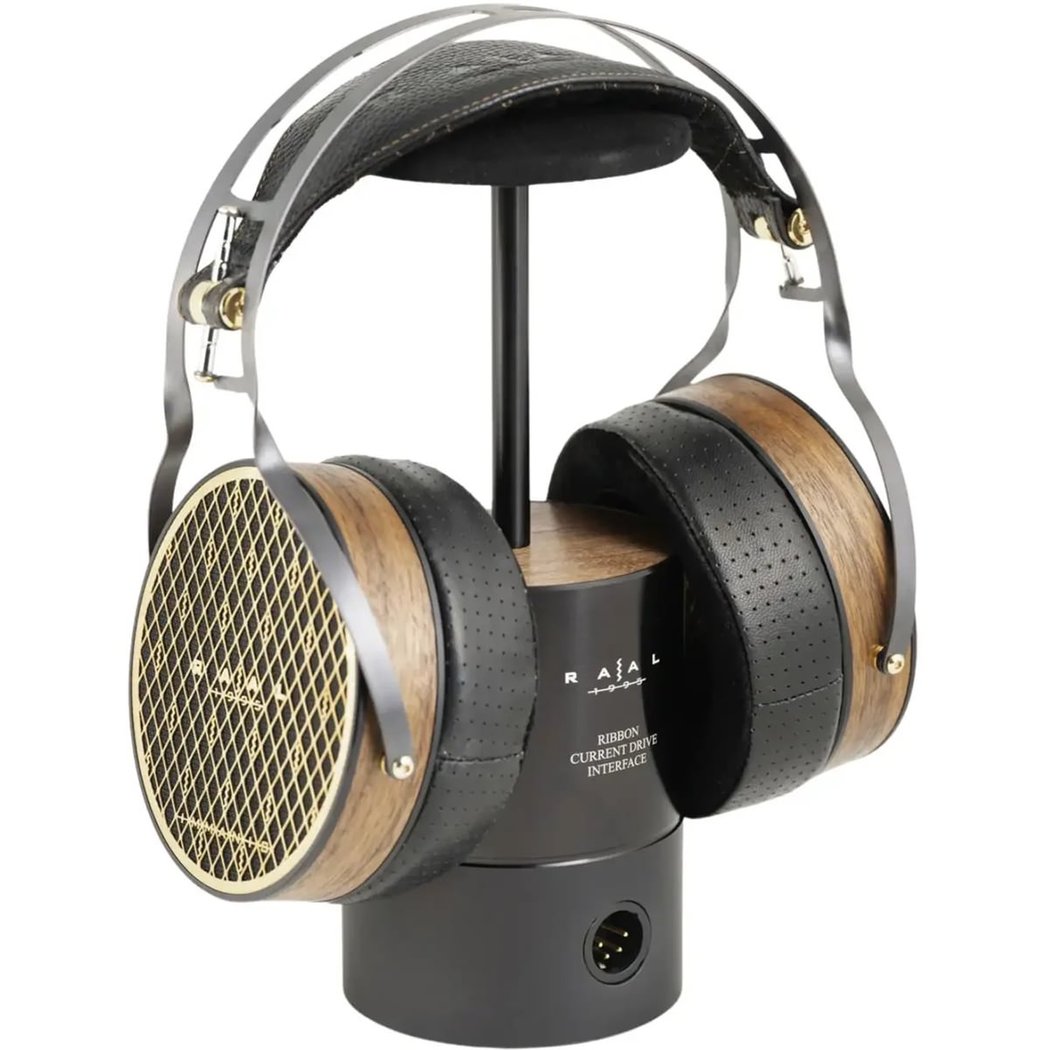

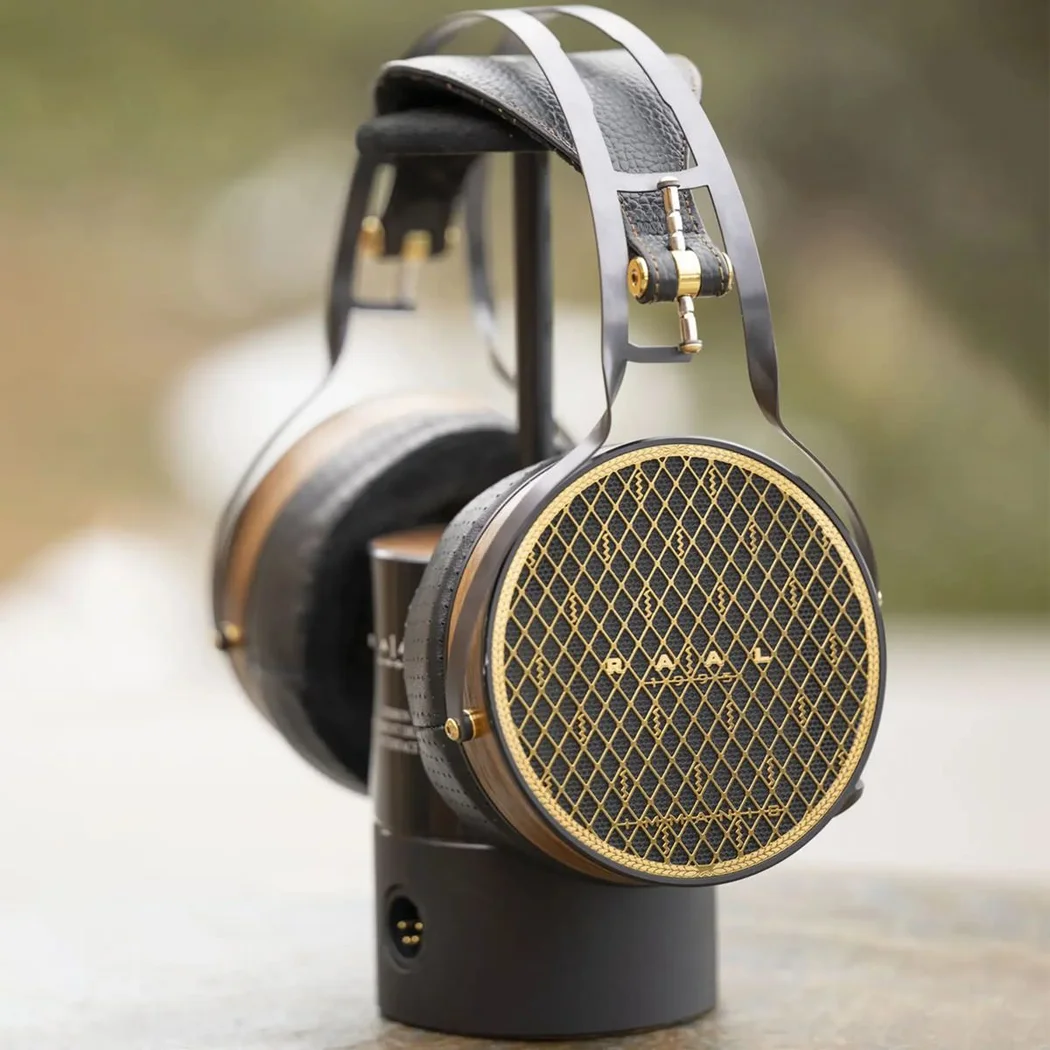

The Immanis requires a special amplifier that can handle the almost non-existent resistance of the headphones. A special interface in the form of a headphone stand has been developed for the new Immanis and Magna, which, together with a special cable, enables connection to a “normal” headphone amplifier.
The Immanis can of course also be connected to an existing TI-1a/b/c, HSA or VM (Direct Drive Amplifier) interface.
| Product Availability | Available (current model) |
| Product Type | Headphone, Amplifier (Headphone) |
| Style/Type | Over-Ear (circumaural), Desktop |
| Headphone/Earphone Cover Design | Open-back |
| Driver Count (Per Side) | 3 |
| Driver Configuration | True Ribbon |
| Driver Size | 25.2 cm² True-Ribbon R³ Driver (Surface Area) |
| Connectivity | Fully Wired |
| Power Amplification Type | Solid State |
| Impedance (Ω) | 0.057Ω |
| Mic for Calls/Communication | None |
| Socket Connector Type | 3.5mm (Dual) |
| Jack Connector Type | XLR (4-Pin) [Balanced] |
| Detachable Cable | Yes |
| Input Connectivity Options | XLR (4-Pin) [Balanced] |
| Driveability (Output Impedance) (Ω) | 0.057Ω |
| Colour | Brown, Gold |
| Product Weight (g) | 626g (without cable) |
| Additional Tech Specs | MOTOR Specifications
Note: Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R).
Ribbon Current-Drive Interface (RCDI-32, RCDI-8) Specifications
Headphone Body Specifications
|
| Web Reviews |
|
| Package Contents |
|
| Warranty | 5 years warranty (local) |
