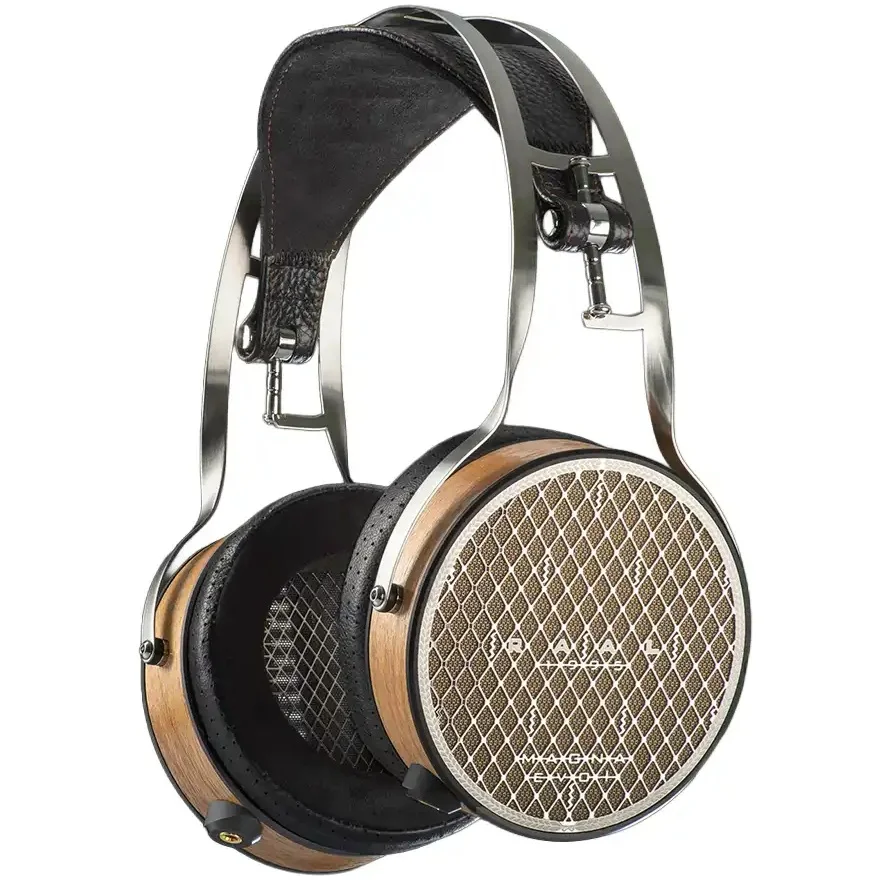

RAAL 1995 MAGMA EVO I True Dual Ribbon Open-Back Over-Ear Headphone
- Newly developed R²e1 dual-ribbon driver system
- Enhanced ribbon excursion control and power handling
- Extended low-frequency response with greater bass authority
- More intimate and full-bodied vocal presentation
- Refined upper midrange tuning for smoother listening
- Exceptional treble extension and ribbon-driver detail retrieval
- Advanced segmented driver architecture optimized for ear-zone interaction
- Handmade in Serbia by RAAL 1995
- Compatible with RAAL premium cable upgrades for further tuning possibilities
Important Notice about Female XLR 4-pin Cable Connector
Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R).
Basic Package
- Headphones: MAGMA EVO I (R²e1 dual-ribbon driver system)
- Cable (Headphones to RCD Interface): SATIS Copper Headphone cable (RAAL pinout on female 4-pin XLR), 1.8m (5’11”)
- Case: Molded Plastic Hardcase (waterproof)
Standard Package
- Headphones: MAGMA EVO I (R²e1 dual-ribbon driver system)
- Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (with Copper wire windings) (8 Ohm or VIVA Audio Special on request)
- Cable (Amplifier to RCD Interface): RCD-XLR (XLR4 to XLR4) 1.5m (4'11")
- Cable (Headphones to RCD Interface): SATIS Copper Headphone cable (RAAL pinout on female 4-pin XLR), 1.8m (5’11”)
- Case: Molded Plastic Hardcase (waterproof)
Deluxe Package
- Headphones: MAGMA EVO I (R²e1 dual-ribbon driver system)
- Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (with Copper wire windings) (8 Ohm or VIVA Audio Special on request)
- Cable (Amplifier to RCD Interface): RCD-XLR (XLR4 to XLR4) 1.5m (4'11")
- Cable (Headphones to RCD Interface): STAR-8 MkII Silver 8-Core Pure Silver 1.8m (5'11")
- Case: Molded Plastic Hardcase (waterproof)
Premium Package
- Headphones: MAGMA EVO I (R²e1 dual-ribbon driver system)
- Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (with Silver wire multi-strand coaxial windings) (8 Ohm or VIVA Audio Special on request)
- Cable (Amplifier to RCD Interface): Star-8 Silver RCD-XLR (XLR4 to XLR4) 0.85m (2'9.46")
- Cable (Headphones to RCD Interface): Star-12 Silver 12-Core Pure Silver 2.9m (9'6")
- Case: Molded Plastic Hardcase (waterproof)
The Sound of the Magna Evo I: An Evolution of the Segmented Driver
The Sound Profile (The Sound)
Deep bass & bass (Down at the bottom)
-
The Starting Point (Magna OG): Has a very tight and crisp upper bass. For many listeners, however, this bass was a bit too dry.
-
The Development: The crisp upper bass remains, but has been supplemented downward with real “oomph” (Oomph) and solid torque (Torque).
-
The Result: A wonderful foundation that seamlessly transitions into the upper bass and lower mids. The overall sound is noticeably warmer as a result.
Lower mids to mids (Low Mid - Mid)
-
The Starting Point (Magna OG): Was appreciated for its more intimate midrange compared to the richer Immanis.
-
The Development: The mids were further enhanced in the Magna Evo I, but in a new way.
-
The result: The playback is even more intimate, paired with a "larger" character in vocal voices, which better connect to the bass and lower mids.
Upper mids to lower treble
-
The further development: This range was subtly lowered—just enough so that the extreme "speed" of the ribbon drivers is not overemphasized.
-
The result: An overall warmer and smoother presentation. This especially benefits recordings mixed too bright or analytical DAC/amplifier chains.
-
The technology behind it: This was solved by the way this frequency range is guided to the concha (ear shell) and antihelix, as well as through targeted absorption to prevent reflective sound waves between the ear and the ribbon driver.
Technical implementation & driver architecture
The headphone uses two ribbon drivers per side, which specifically address different areas of the ear:
| Driver position | Target area in the ear | Acoustic treatment & effect |
| Rear driver | Directly above the concha (ear shell) | Covered with open-cell rigid foam. Gently absorbs the upper mids and progressively dampens higher frequencies. Moderates the frequency response that radiates frontally into the concha. |
| Front driver | Directly above the ear canal | Completely open. Since this ear area naturally amplifies hardly any sound, the highs can flow in unhindered. The result is silky, even ribbon highs without unpleasant peak spikes. |
Cable tuning (fine adjustment of the sound)
The upper mid and lower treble range reacts very sensitively to the cable used:
-
For warmth & creaminess: The standard included Satis Copper (1.8 m) delivers exactly this tuning in the upper mids.
-
For brilliance & "Diamond Dust": Those seeking the last bit of sparkle in the treble reach for the silver cables STAR-8 Silver or STAR-12.
The Origins
"This shows where the journey with segmented drivers is headed. The different acoustic treatment of various ear zones is the biggest change here. It is the natural evolution of the segmented driver concept that I have had in mind for a long time. This is my first draft with this approach. I hope you like it!" - Aleksandar, RAAL 1995
| Product Availability | Indent-basis only (not always available) |
| Product Type | Headphone |
| Style/Type | Over-Ear (circumaural), Desktop, Portable |
| Headphone/Earphone Cover Design | Open-back |
| Driver Count (Per Side) | 2 |
| Driver Configuration | True Ribbon |
| Driver Size | 16.8 cm² True-Ribbon R²e1 Driver (Surface Area) |
| Connectivity | Fully Wired |
| Impedance (Ω) | 0.038Ω |
| Mic for Calls/Communication | None |
| Socket Connector Type | 3.5mm (Dual) |
| Jack Connector Type | XLR (4-Pin) [Balanced] |
| Detachable Cable | Yes |
| Input Connectivity Options | XLR (4-Pin) [Balanced] |
| Driveability (Output Impedance) (Ω) | 0.057Ω |
| Product Weight (g) | 515g (without cable) |
| Additional Tech Specs | MOTOR Specifications
Note: Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R).
Ribbon Current-Drive Interface (RCDI-32, RCDI-8) Specifications
Headphone Body/Housing Specifications
|
| Colour | Black, Brown, Silver |
| Package Contents | Basic Package
Standard Package
Deluxe Package
Premium Package
|
| Warranty | 5 years warranty (local) |
