AIYIMA T9 Wireless Bluetooth Receiver/Streamer, Coaxial / Optical / USB DAC & Tube Integrated Amplifier

S$179.00 S$129.00
Why You Should Get It
  • Strong output power and low frequency output: Each channel can output 100W(4Ω), match perfectly and easily to drive all 3-8Ω passive speakers, adds a low frequency output easy to connect active subwoofer and build 2.1 channel system, the bass effects is greatly enhanced
  • With multiple digital audio inputs: Bluetooth 5.0 / USB / Coaxial / Optical / stereo RCA, compatible with most audio device such as phones, computers, tablets, TVs, TV, CD players etc. The perfect combination of DAC and amplifier, very suitale for audiophiles who have various audio devices

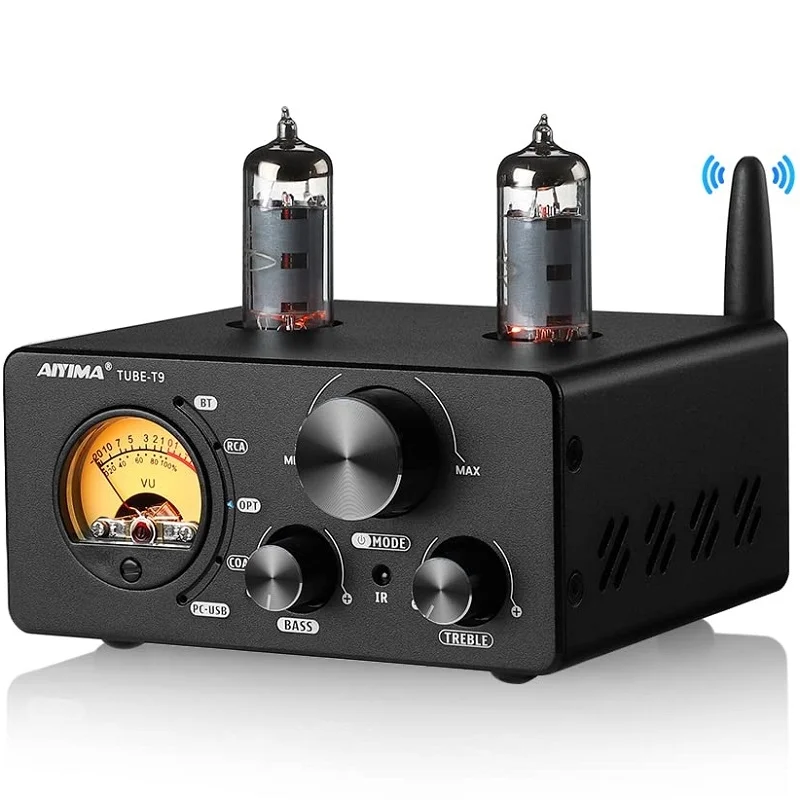

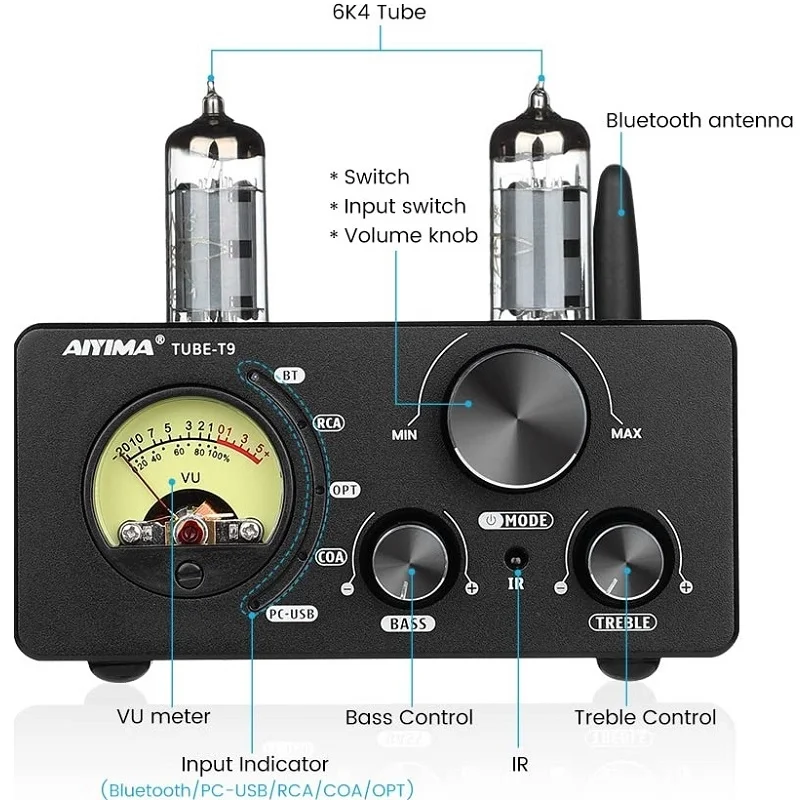

  • Unique and Amazing Combination: integrated T9 amplifier with VU meter into whole in such a mini size, when enjoy HiFi music, the pointer dancing in the warm light with strong vintage feelings, dynamically decorates the audio system space
  • HiFi clear sound with tone control: resonable circuit and concise wiring, adopts vacuum tubes to soften the sound and filter out the digital feelings, sounds warm and sweet without noise. Also with treble and bass knobs to adjust one's own preferable sound styles, presents HiFi music with rousing highs and deep lows
  • Practical functions to simplify use: with input selection and indicators, clearly to show the working status in real time; aluminum alloy case is specially designed, cool and unique to decorate your desktop space.With Remote Control(Not include AA Battery)
Warranty
1 year warranty (local)
In The Box
  • 1 x T9 amplifier
  • 2 x Tubes
  • 1 x Bluetooth Antenna
  • 1 x PC-USB cable
  • 1 x User manual
  • 1 x 24V DC Power adapter (subject to changes)

Product Availability Available (current model)
Product Type DAC (Digital-Analog Converter), Amplifier (Integrated), Amplifier (Power), Wireless Transmitter / Receiver
Style/Type Desktop
Features Bluetooth, Line-out, Line-in
Connectivity Wireless & Wired
DAC RuiMeng MS8412
Op-Amp / Amplifier Texas Instruments NE5532 (Op-Amp) / TPA3250 (Amplifier)
Power Amplification Type Solid State, Vacuum Tube
Bluetooth Version v5.0
Bluetooth Codecs SBC
Sampling / Bitrate Up to 24bit/192khz (Optical/Coaxial)
Frequency Response (Hz) 20-20Khz (±1db)
Impedance (Ω) 3-8Ω
Signal-to-Noise Ratio (SNR) ≥ 98db
Total Harmonic Distortion (THD) 0.07%
Max Output Power (mW / W) 100W x 2 (4Ω load)
Microphone None

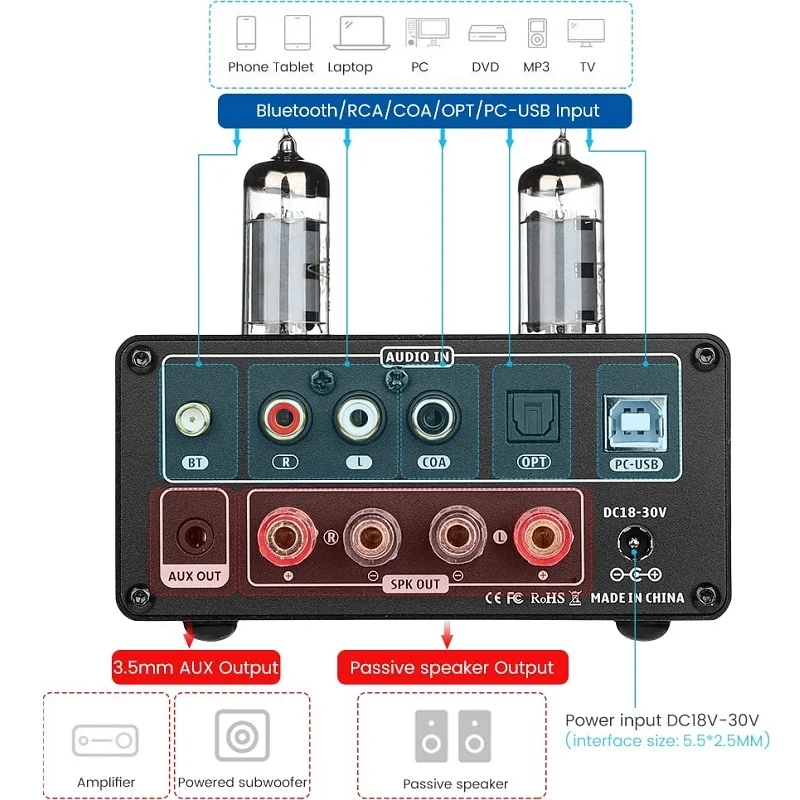

Input Connectivity Options USB Type-B (USB-B) [Data/Audio Signal], Coaxial (SPDIF), Optical TOSLINK (SPDIF), Bluetooth, RCA (Line-In)
Output Connectivity Options 3.5mm Stereo, Binding Posts (Banana Plug Sockets)
Driveability (Output Impedance) (Ω) 3-8Ω
Colour Black

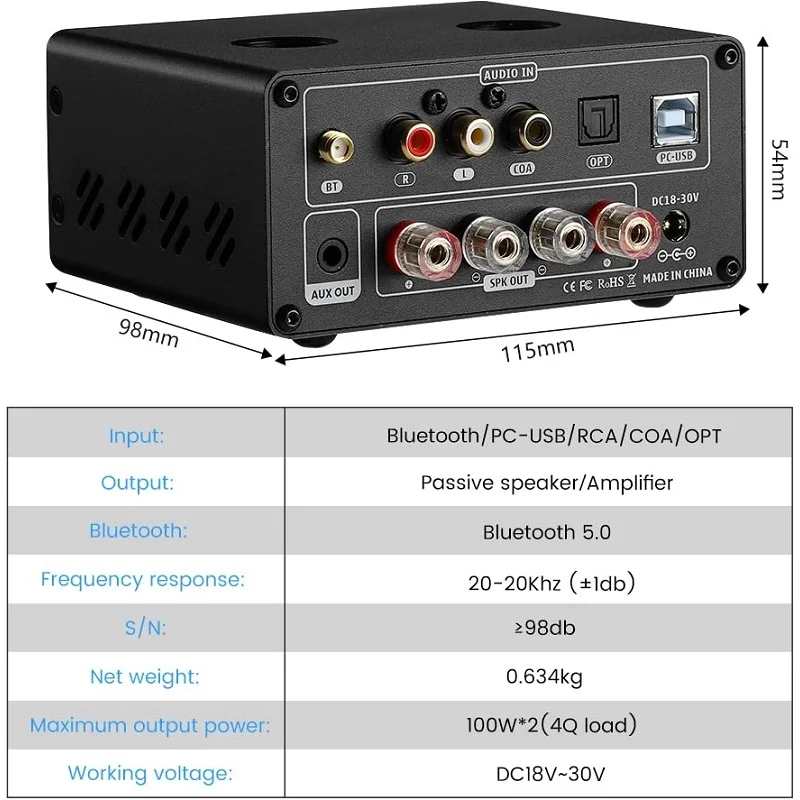

Product Dimensions 115 x 98 x 54mm
Product Weight (g) 634g
Warranty 1 year warranty (local)

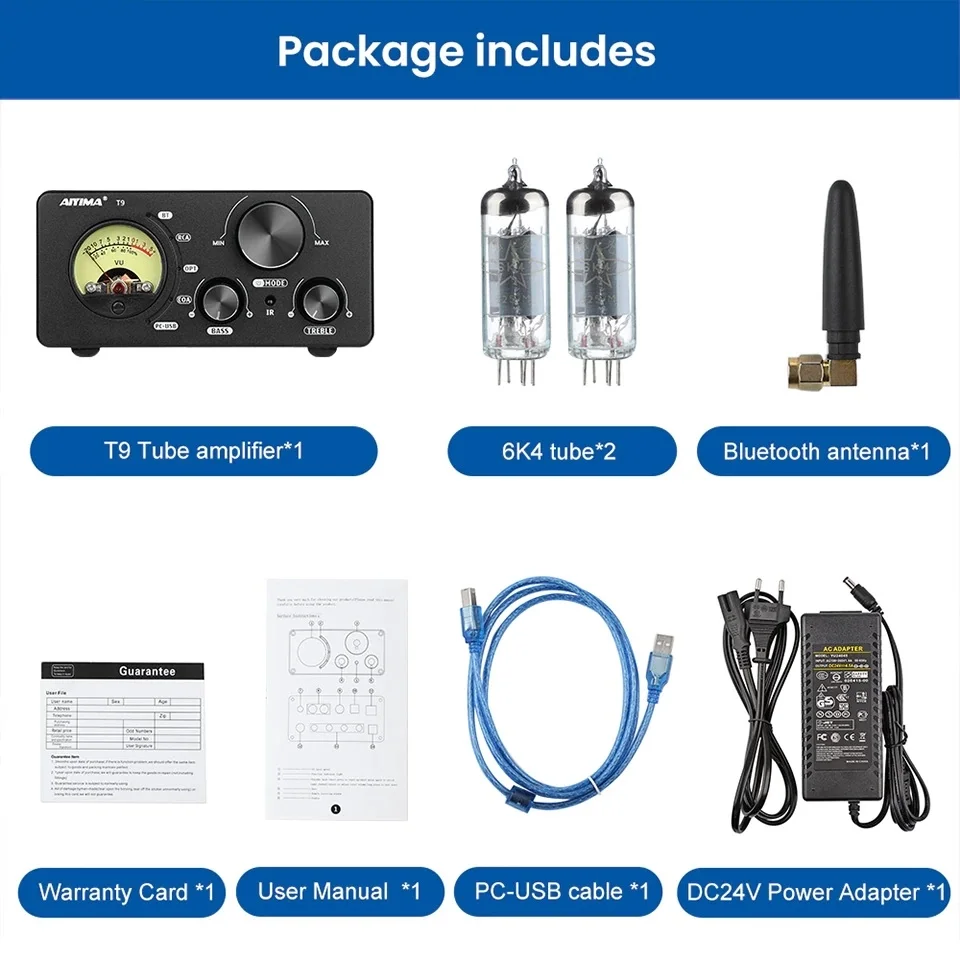

Package Contents
  • 1 x T9 amplifier
  • 2 x Tubes
  • 1 x Bluetooth Antenna
  • 1 x PC-USB cable
  • 1 x User manual
  • 1 x 24V DC Power adapter (subject to changes)
Additional Tech Specs
  • Chipset: 6K4+TPA3250x2+AC6926C+CM6542+MS8412+NE5532
  • Tube model: 6K4
  • Replaceable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6Ж1п, 6AK5, etc.
  • Support: MP3/WMA/APE/FLAC/WAV
  • PC USB sampling rate: 24bit/96khz
  • Optical/Coaxial sampling rate: 24bit/192khz
  • Bluetooth sampling rate: 24bit/48khz
  • PC-US support system: XP/W7/W8/W10/MAC/Linux
  • Treble/bass adjustment range: ±6db
  • Speaker impedance: 3-8Ω
  • Output power: 100W x 2 (4Ω load)
  • Input options: Bluetooth / RCA/pc-usb/optical/coaxial
  • Output options: passive speaker, active subwoofer
  • Working power supply: DC18-30V
  • Gross weight: 900g (without power adapter)

If you're based in Singapore

  • spend $300 or more for free doorstep courier delivery1.
  • add a few more bucks, for an even quicker prioritised delivery.
  • self-collection is possible at our Showroom, based in Tai Seng. Find out where, and how to get to us here.
  • and yes, you may arrange your own 3rd party logistics to pickup your purchases on your behalf.
    GrabExpress, Lalamove, GoGoX, RydeSEND services are welcome.






Friends from Overseas,

  • we do ship internationally.
  • shipping fees will be displayed during checkout.
  • do be aware of import tax/VAT that may apply.



Exclusions do apply. e.g. Bulky or odd sized products, products with gross weight 20kg and above, ex-demo products, products on clearance sales, orders that require installation/calibration, etc. We reserve the right to amend this list of exclusions at any time.

No Reviews Available Yet. Leave Your Review

Product Availability Available (current model)
Product Type DAC (Digital-Analog Converter), Amplifier (Integrated), Amplifier (Power), Wireless Transmitter / Receiver
Style/Type Desktop
Features Bluetooth, Line-out, Line-in
Connectivity Wireless & Wired
DAC RuiMeng MS8412
Op-Amp / Amplifier Texas Instruments NE5532 (Op-Amp) / TPA3250 (Amplifier)
Power Amplification Type Solid State, Vacuum Tube
Bluetooth Version v5.0
Bluetooth Codecs SBC
Sampling / Bitrate Up to 24bit/192khz (Optical/Coaxial)
Frequency Response (Hz) 20-20Khz (±1db)
Impedance (Ω) 3-8Ω
Signal-to-Noise Ratio (SNR) ≥ 98db
Total Harmonic Distortion (THD) 0.07%
Max Output Power (mW / W) 100W x 2 (4Ω load)
Microphone None
Input Connectivity Options USB Type-B (USB-B) [Data/Audio Signal], Coaxial (SPDIF), Optical TOSLINK (SPDIF), Bluetooth, RCA (Line-In)
Output Connectivity Options 3.5mm Stereo, Binding Posts (Banana Plug Sockets)
Driveability (Output Impedance) (Ω) 3-8Ω
Colour Black
Product Dimensions 115 x 98 x 54mm
Product Weight (g) 634g
Warranty 1 year warranty (local)
Package Contents
  • 1 x T9 amplifier
  • 2 x Tubes
  • 1 x Bluetooth Antenna
  • 1 x PC-USB cable
  • 1 x User manual
  • 1 x 24V DC Power adapter (subject to changes)
Additional Tech Specs
  • Chipset: 6K4+TPA3250x2+AC6926C+CM6542+MS8412+NE5532
  • Tube model: 6K4
  • Replaceable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6Ж1п, 6AK5, etc.
  • Support: MP3/WMA/APE/FLAC/WAV
  • PC USB sampling rate: 24bit/96khz
  • Optical/Coaxial sampling rate: 24bit/192khz
  • Bluetooth sampling rate: 24bit/48khz
  • PC-US support system: XP/W7/W8/W10/MAC/Linux
  • Treble/bass adjustment range: ±6db
  • Speaker impedance: 3-8Ω
  • Output power: 100W x 2 (4Ω load)
  • Input options: Bluetooth / RCA/pc-usb/optical/coaxial
  • Output options: passive speaker, active subwoofer
  • Working power supply: DC18-30V
  • Gross weight: 900g (without power adapter)
