FiiO K11 R2R vs K13 R2R — Which DAC/Amp Should You Choose?
When it comes to high-value DAC/Amps, FiiO has carved out a unique space for audiophiles who want reference-quality sound without spending four figures. The release of the K13 R2R as the successor to the K11 R2R has sparked one of the most asked questions in the community: Is the upgrade worth it?
In this guide, we’ll break down the core differences between the two models — from sound tuning and internal architecture, to design improvements and practical usage — so you’ll have clarity before making your next purchase.
What is R2R and Why Does It Matter?
Before diving into the differences, it’s worth reminding ourselves what R2R DAC technology is about. Unlike delta-sigma DACs, which dominate the market, an R2R ladder DAC uses a resistor network to decode digital signals into analog. The result is often described as more natural, smoother, and more “analog-like,” making it especially appealing for listeners who value musicality over analytical precision.
FiiO’s move to adopt R2R in their mid-range desktop DAC line is a bold step, as it makes this unique sound signature far more accessible.
TLDR;
According to Darko.audio's review, the newer released K13 R2R offers
- a larger chassis with a top porthole
- an IEC mains input (bye-bye outboard power brick)

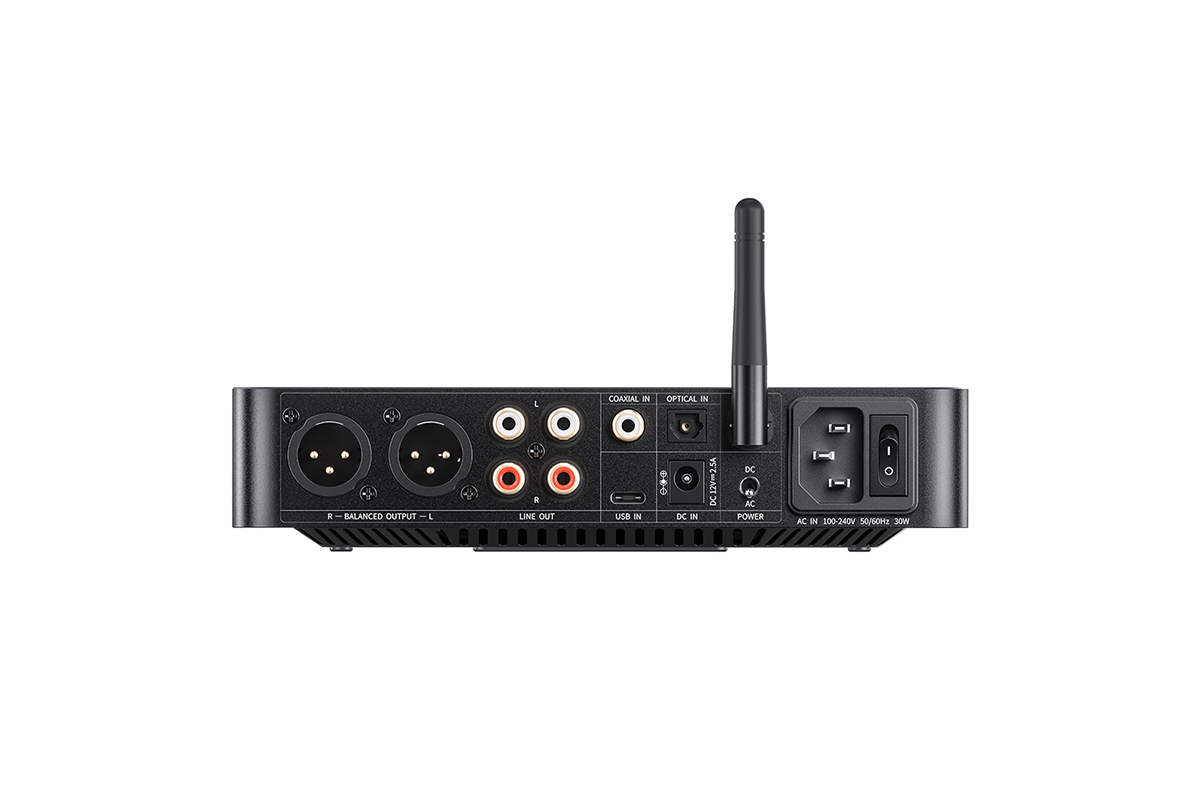

- rear-panel balanced XLR outputs
- a second set of single-ended RCA outputs
- almost double the headphone output power (up to 2.4 Watts)
- an LDAC Bluetooth audio input
- on-board parametric EQ, accessible over Bluetooth via the FiiO Control app
FiiO K11 R2R — The Gateway to Affordable R2R
The K11 R2R introduced many audiophiles to resistor-ladder sound at a wallet-friendly price. Some key highlights include:
-
Balanced Output Power: Capable of driving most mid-tier headphones with authority.
-
Compact Desktop Design: Minimalist yet functional, suitable for small spaces or work desks.
-
Entry to R2R Sound: Offers a taste of the warmth and natural dynamics typical of ladder DACs.
For many, it was the “gateway” R2R DAC that finally made the topology approachable without breaking the bank.

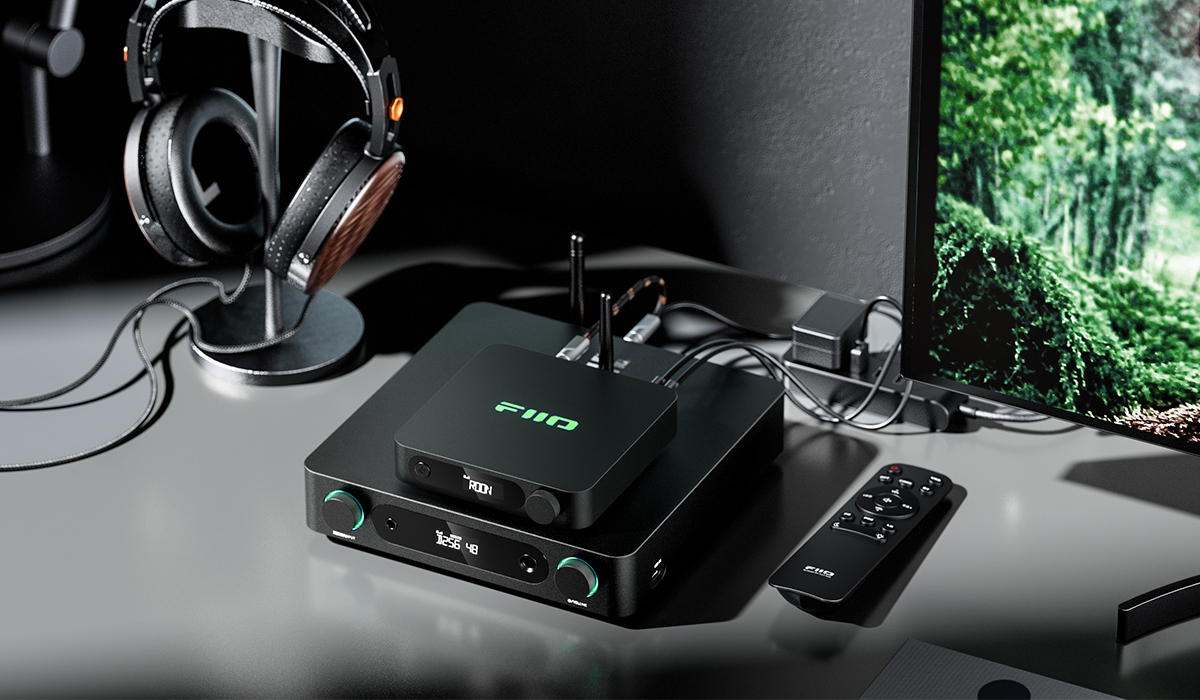

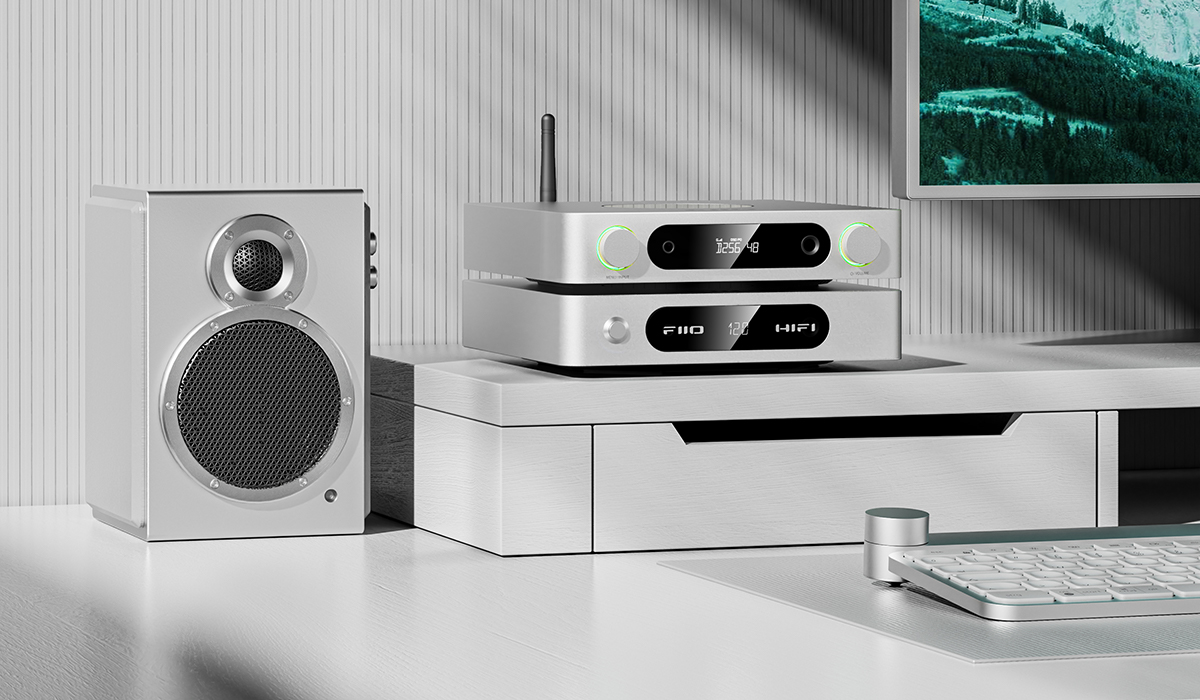

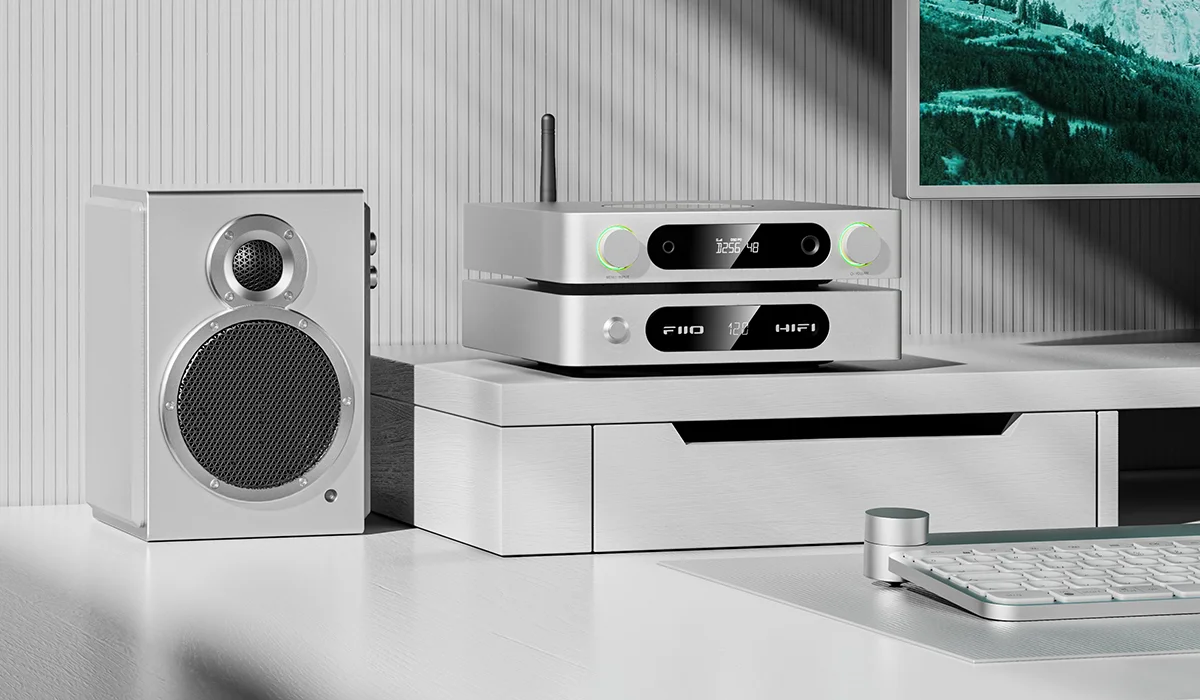

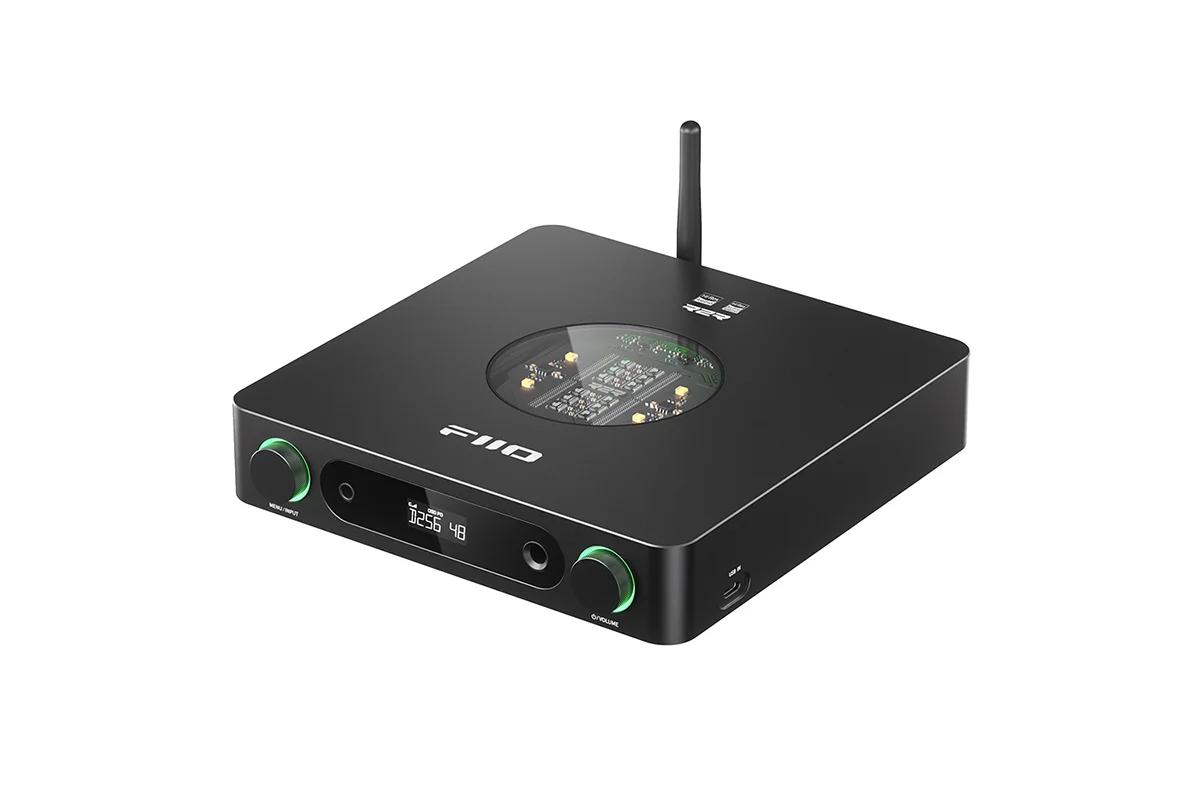

FiiO K13 R2R — Refinement and Next-Level Performance
With the K13 R2R, FiiO didn’t just repackage the K11 R2R — they refined the entire experience. The most notable upgrades include:
-
Improved R2R Ladder Array: Lower distortion and tighter channel matching, resulting in more precise imaging.
-
Higher Output Power: Better synergy with planar magnetic headphones and higher-impedance models.
-
Upgraded Power Supply: Reduces noise floor, providing blacker backgrounds for sensitive IEMs.
-
Refined Interface & Build: More robust volume control and cleaner aesthetic for desktop setups.
In short, the K13 R2R feels more mature, aimed not just at newcomers but also at enthusiasts who demand more refinement.
| Specification | FiiO K11 R2R | FiiO K13 R2R |
|---|---|---|
| DAC Architecture | Discrete R2R ladder network (entry-level design) | Refined R2R ladder with improved resistor matching |
| Supported Sample Rates | PCM up to 384kHz / DSD256 | PCM up to 768kHz / DSD512 (native) |
| Output Power (Balanced) | ~1.4W @ 32Ω | ~2.6W @ 32Ω |
| Output Power (Single-Ended) | ~350mW @ 32Ω | ~700mW @ 32Ω |
| SNR (Balanced) | ≥118dB | ≥121dB |
| THD+N | 0.002% | 0.0008% |
| Headphone Outputs | 6.35mm SE, 4.4mm Balanced | 6.35mm SE, 4.4mm Balanced (improved circuit) |
| Line Outputs | RCA (fixed) | RCA + Balanced TRS (switchable) |
| USB Interface | USB Type-C (XMOS receiver) | USB Type-C (newer XMOS chipset with lower latency) |
| Power Supply | External power adapter | Enhanced low-noise PSU with better filtering |
| Sound Signature | Warm, smooth, easy listening | More detail, wider stage, dynamic and engaging |
| Best For | Newcomers to R2R, budget-conscious buyers, relaxed listening | Audiophiles with demanding headphones, detail-focused listening, long-term setups |
FiiO K11 R2R vs K13 R2R — Specifications & Comparison
DAC Architecture
K11 R2R: Discrete R2R ladder network (entry-level design)
K13 R2R: Refined R2R ladder with improved resistor matching
Supported Sample Rates
K11 R2R: PCM up to 384kHz / DSD256
K13 R2R: PCM up to 768kHz / DSD512 (native)
Output Power
K11 R2R: ~1.4W @ 32Ω (Balanced), ~350mW @ 32Ω (SE)
K13 R2R: ~2.6W @ 32Ω (Balanced), ~700mW @ 32Ω (SE)
Measurements
K11 R2R: SNR ≥118dB, THD+N 0.002%
K13 R2R: SNR ≥121dB, THD+N 0.0008%
Connectivity
K11 R2R: 6.35mm SE, 4.4mm Balanced, RCA (fixed), USB-C (XMOS)
K13 R2R: 6.35mm SE, 4.4mm Balanced, RCA + Balanced TRS, USB-C (newer XMOS)
Power Supply
K11 R2R: External power adapter
K13 R2R: Enhanced low-noise PSU with better filtering
Sound Signature
K11 R2R: Warm, smooth, relaxed presentation
K13 R2R: More detailed, tighter bass, wider soundstage
Best For
K11 R2R: Newcomers to R2R, budget-conscious buyers, vocal-focused listening
K13 R2R: Audiophiles with demanding headphones, detail-focused listening, long-term setups
Practical Considerations — Which One Fits You?
When deciding between the K11 R2R and K13 R2R, consider your current and future setup:
-
Choose the K11 R2R if:
-
You’re new to R2R and want an affordable introduction.
-
You use primarily efficient headphones or IEMs.
-
Budget is a primary concern.
-
-
Choose the K13 R2R if:
-
You already own mid-to-high-end headphones.
-
You value higher output power and better dynamic range.
-
You want a long-term DAC/amp that won’t need replacing soon.
-
Final Verdict — Is the Upgrade Worth It?
Both the K11 R2R and K13 R2R deliver tremendous value, but your choice comes down to where you are in your audio journey. The K11 remains a fantastic entry point into R2R sound, but the K13 represents a more complete package with refinements that seasoned listeners will appreciate.
For those already invested in quality headphones and looking for a DAC/amp that can keep up, the K13 R2R is the clear winner. For newcomers or budget-conscious buyers, the K11 R2R still offers unbeatable value.
FAQs
Is the FiiO K13 R2R worth the higher price over the K11 R2R?
Yes, if you want more power, better detail retrieval, and improved build quality. For beginners, the K11 R2R is still an excellent choice and offers outstanding value.
Can both the K11 R2R and K13 R2R drive planar magnetic headphones?
The K13 R2R has more headroom and performs better with planar magnetic headphones, while the K11 R2R is best suited for dynamic drivers or more efficient models.
Why are FiiO R2R DACs often out of stock?
The demand for affordable R2R DACs far exceeds supply, as resistor ladder arrays are complex to produce in large volumes. This often leads to global backorders for the K11 R2R before, and we're definitely expecting the same for the K13 R2R.
