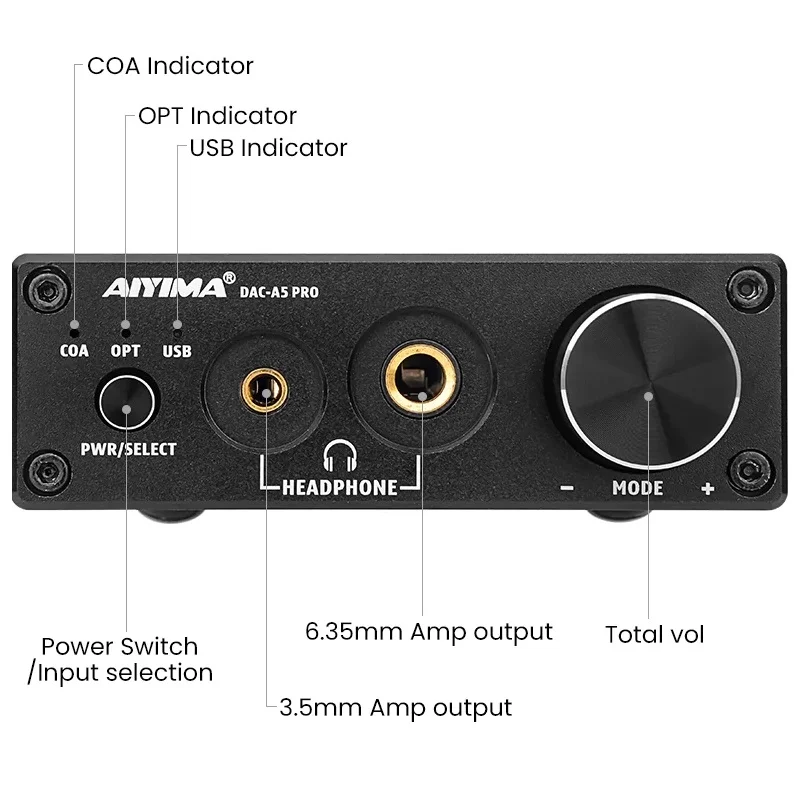

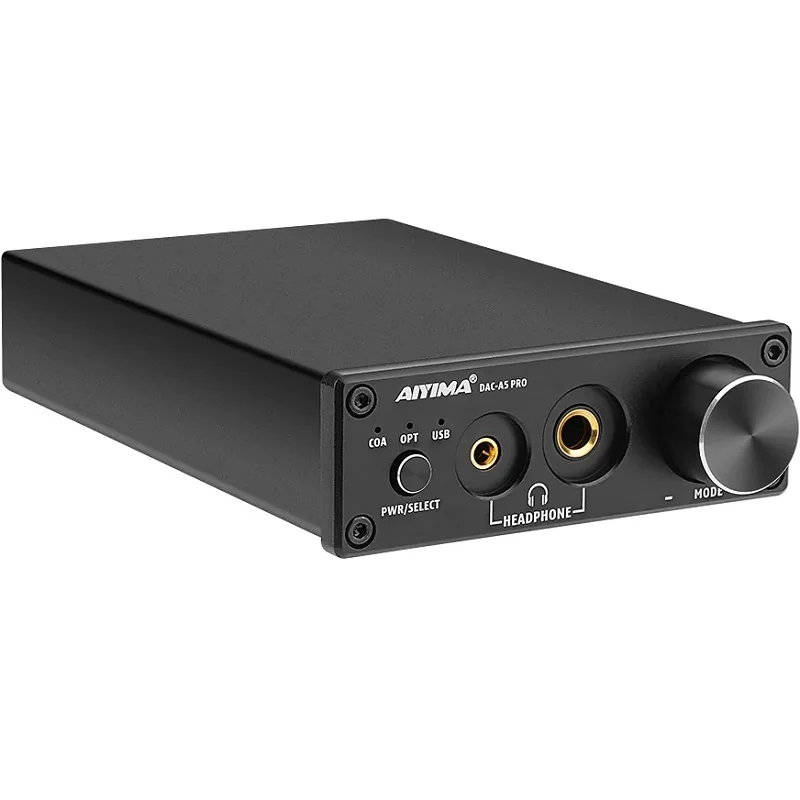

AIYIMA DAC-A5 Pro Wired Desktop Headphone Amplifier, USB DAC & Preamplifier
- HiFi Digital Audio Decoder USB DAC Headphone Amplifier With 12V power adapter
- RCA and 3.5mm/6.35mm Dual headphones outputs,USB and optical coaxial S/PDIF inputs, can choose the input mode,Let you hear beautiful music anytime, anywhere
- USB/Optical/Coaxial Samping Rate 24bit/192kHz HD with low jitter,USB Digital-to-Analog Adapter Decoder & Headphone Amplifier DAC Decoder
- Upgrade the fiber base, optimize the circuit board design,Build quality is surprisingly solid,Nice touch
- With the volume control knob that can adjust the headphones as well as the RCA output,Adopt headphone amp chips TPA6120, OPA2134; Built-in CM6642 + NE5532 + ESS9018K2M DAC chips, as desktop DAC, stereo headphone amp, and preamp.Can match digital power amplifier analog power amplifier
- 1 x DAC-A5 Pro unit
- 1 x 12V DC Power supply
- 1 x USB Cable
- 1 x User's Manual
| Product Availability | Available (current model) |
| Product Type | DAC (Digital-Analog Converter), Amplifier (Headphone), Amplifier (Preamplifier) |
| Style/Type | Desktop |
| Features | Line-out, Dual Headphone Output |
| Connectivity | Fully Wired |
| DAC | ESS Sabre DSS9018K2M |
| Op-Amp / Amplifier | NE5532P (Pre-Amp), LM49720 (LPF) |
| Power Amplification Type | Solid State |
| Sampling / Bitrate | Up to 24Bit/192kHz |
| Frequency Response (Hz) | 20H-20kHz (±3dB) |
| Signal-to-Noise Ratio (SNR) | ≥ 105dB |
| Mic for Calls/Communication | None |

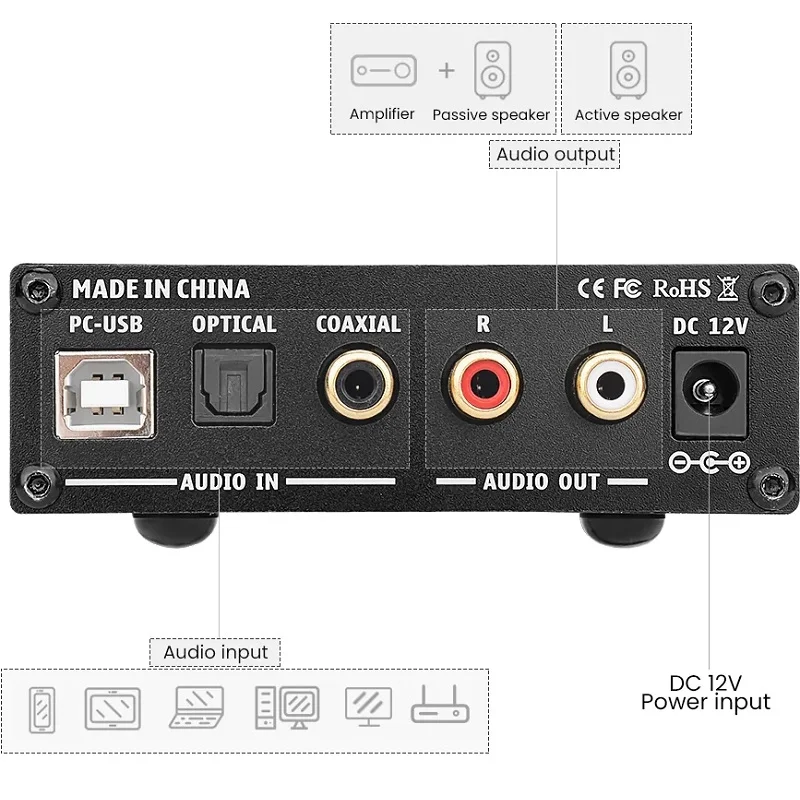

| Input Connectivity Options | USB Type-B (USB-B) [Data/Audio Signal], Coaxial (SPDIF), Optical TOSLINK (SPDIF) |
| Output Connectivity Options | RCA (Line-Out), 6.35mm Stereo, 3.5mm Stereo |
| Driveability (Output Impedance) (Ω) | 16-300Ω |
| Colour | Black |

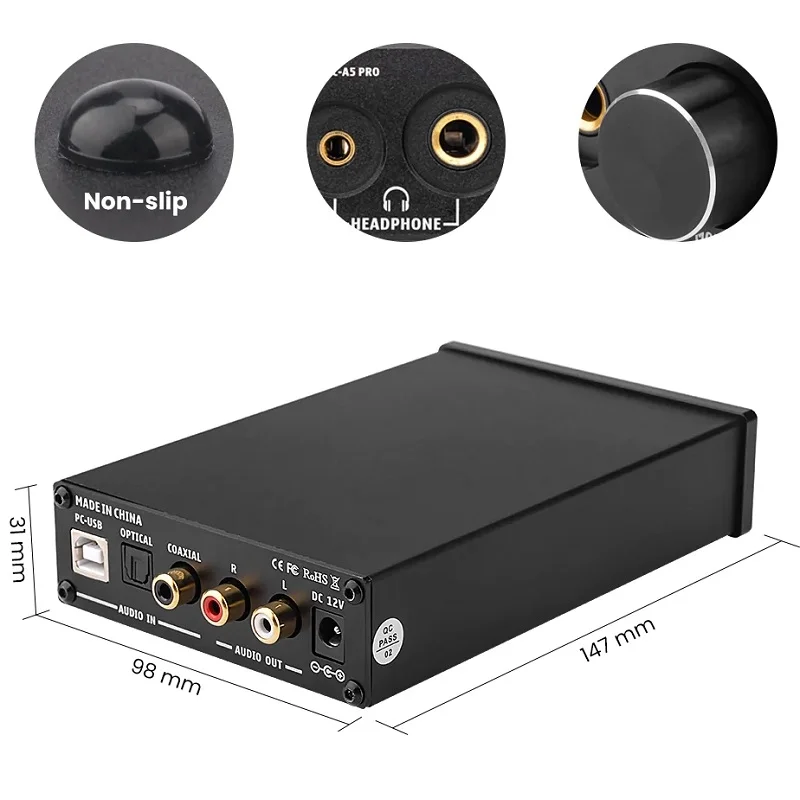

| Product Dimensions | L148.5 * W98 * H33mm |
| Product Weight (g) | 350g |
| Package Contents |
|
| Warranty | 1 year warranty (local) |
