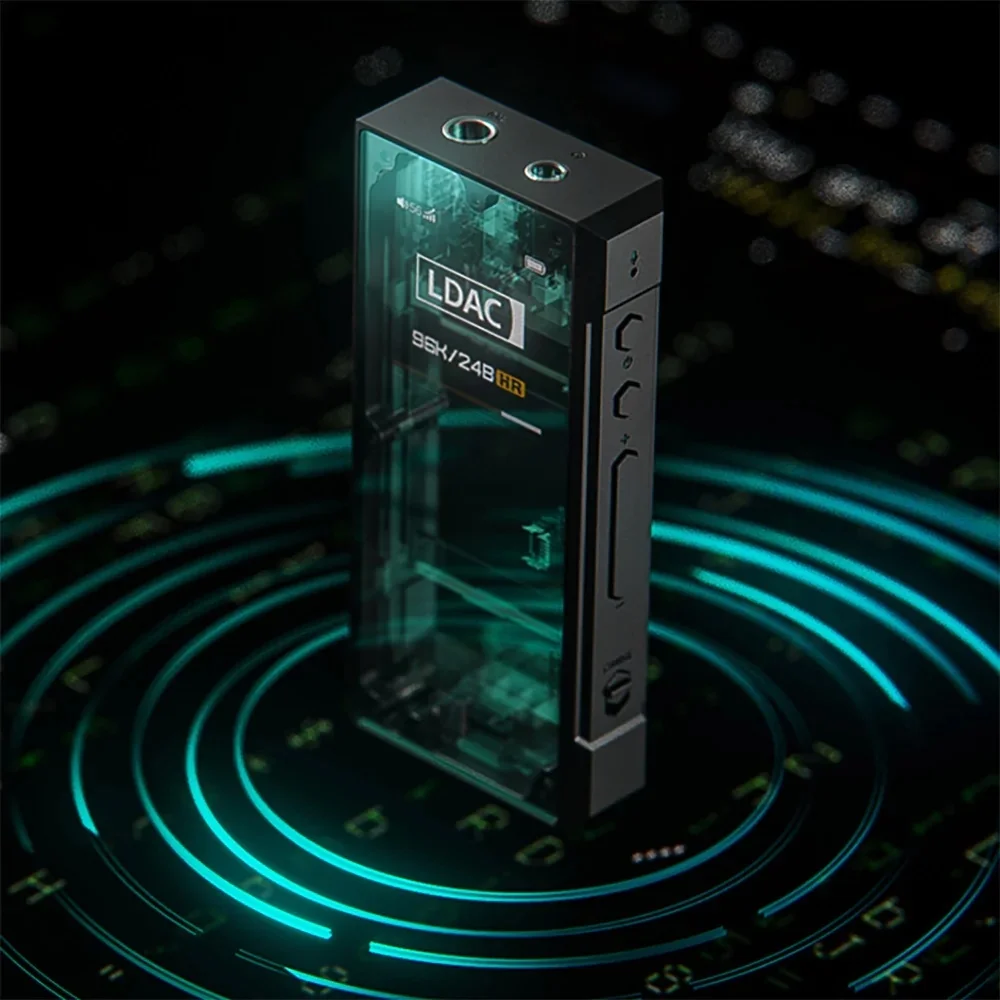

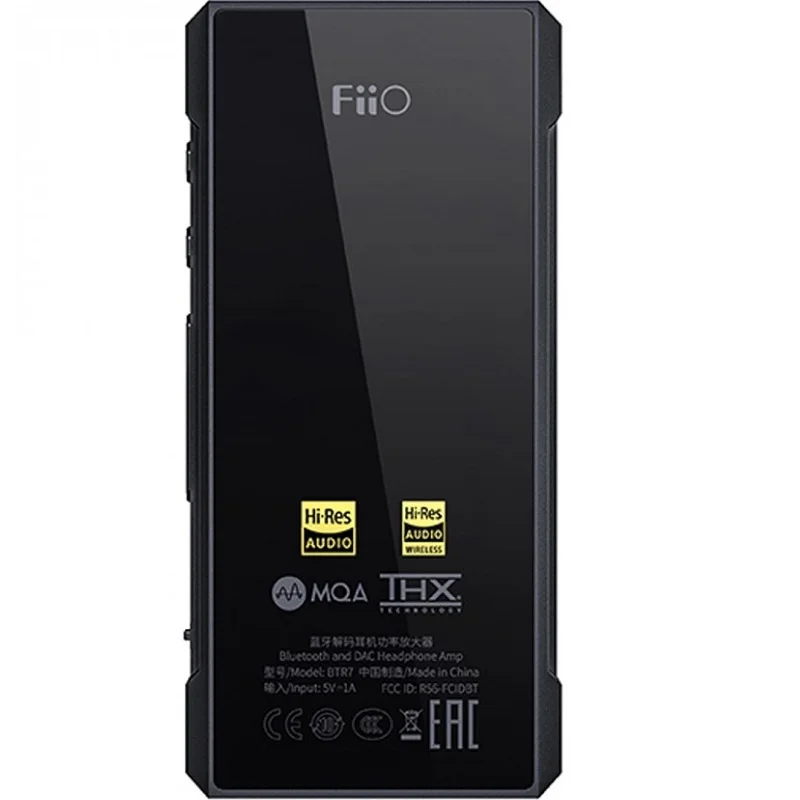

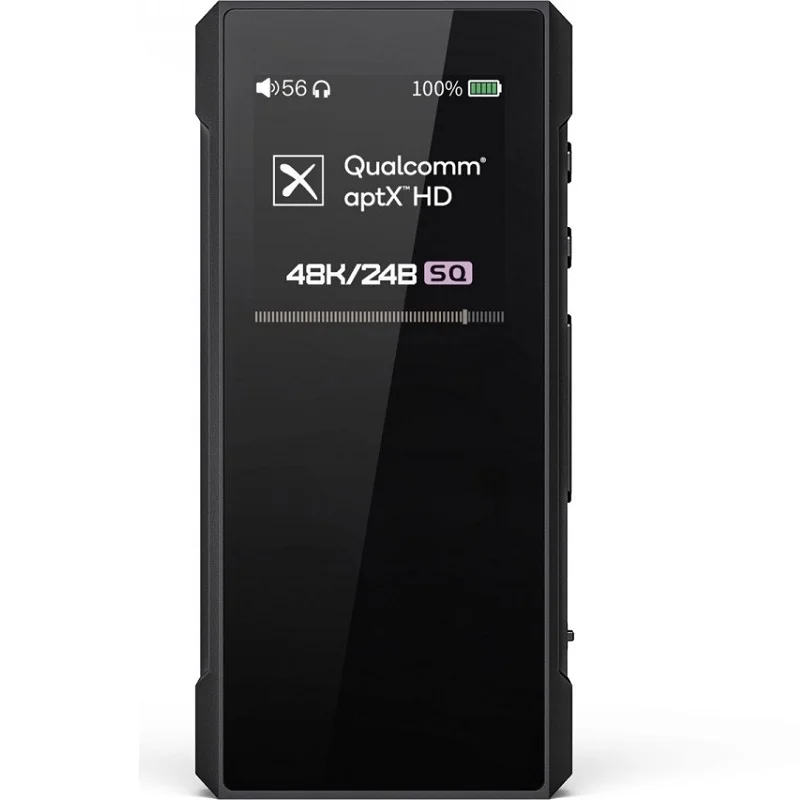

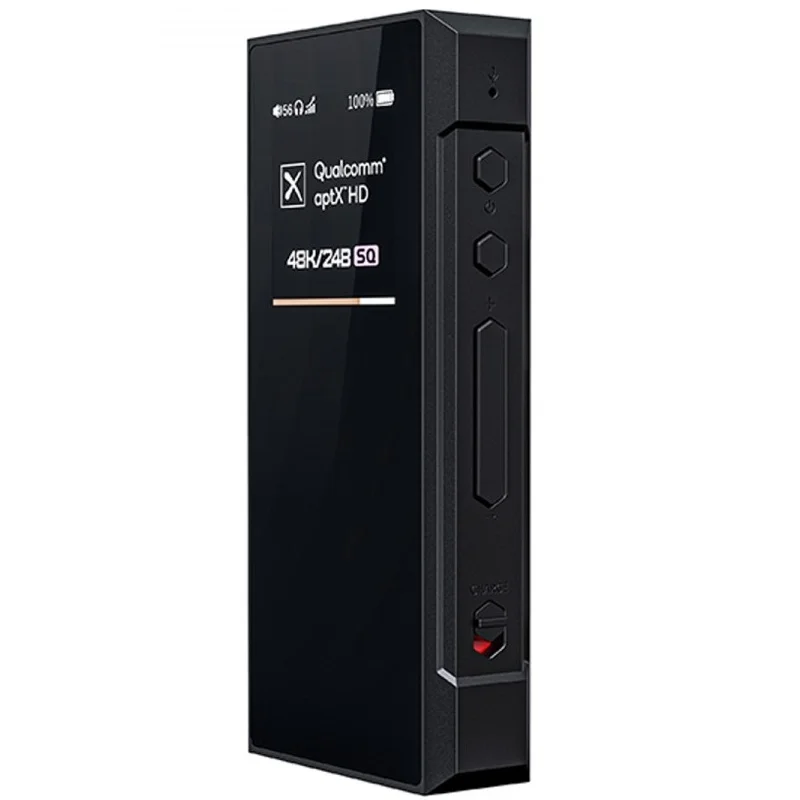

FiiO BTR7 MQA Wireless Bluetooth Portable Headphone Amplifier & USB DAC with Mic
- Dual ES9219CDAC chips.
- THX AAA-28*2 Headphone Amplifier.
- Independent DAC+Low-Pass Filter+HiFi THX Amplifier architecture.
- Qualcomm’s latest QCC5124 Bluetooth chipset.
- Supports high-resolution LDAC, AptX HD, AptX Adaptive, AAC, SBC wireless codecs.
- Stable connection with a seamlessly integrated metal antenna.
- High-resolution XMOS USB Receiver.
- Supports MQA rendering in USB DAC mode.
- Supports Wired as well as wireless charging.
- Houses both single-ended as well as balanced headphone connections.
- 1 x BTR7
- 1 x Type-C USB cable
- 1 x Type-C to Type-C data cable
- 1 x Leatherette case
- 1 x User Manual
- 1 x Warranty card
Product Availability | Available (current model) |
Product Type | DAC (Digital-Analog Converter), Amplifier (Headphone), Portable Amplifier & DAC |
Style/Type | Portable |
Features | Bluetooth, Microphone, Line-out, Dual Headphone Output, High-Res Audio Certified, DSD, MQA (Master Quality Authenticated) |
Connectivity | Wireless & Wired |
DAC | 2 x ESS Sabre ES9219CDAC (Dual) |
Op-Amp / Amplifier | 2 x THX_AAA_28 (Dual) |
Bluetooth Version | v5.1 |
Bluetooth Codecs | SBC, AAC, aptX, aptX Low Latency (aptX-LL), aptX HD, aptX Adaptive, LDAC |
Sampling / Bitrate | Up to 32bit/384kHz, DSD256 |
Frequency Response (Hz) | 20Hz~50kHz ±<0.5dB |
Signal-to-Noise Ratio (SNR) | 118dB Single-Ended, 115dB A-weighted Balanced |
Total Harmonic Distortion (THD) | <0.00055% (1kHz/-6dB@32Ω) [3.5mm SE]; <0.00048% (1kHz/-2dB@32Ω) [4.4mm Bal] |
Max Output Power (mW / W) | Single-Ended >160mW+160mW , Balanced >320mW+320mW |
Microphone | Yes (Built-In) |
Input Connectivity Options | USB Type-C (USB-C) [Charging], USB Type-C (USB-C) [Data/Audio Signal], Bluetooth |
Output Connectivity Options | 3.5mm Stereo, 4.4mm (5-Pole) [Balanced] |
Driveability (Output Impedance) (Ω) | 16~150Ω (BAL) |
Colour | Black |
Product Dimensions | About 39.6 x 83.6 x 14.6mm |
Product Weight (g) | About 68g |
Battery Life (Hours) | Up to 9 hours battery life, charging time 1.5 hours wired, 3 hours wireless; 880mAh, supports wired and wireless charging, |
Warranty | 1 year warranty (local) |
Package Contents |
|
If you're based in Singapore,
- spend $300 or more for free doorstep courier delivery1.
- add a few more bucks, for an even quicker prioritised delivery.
- self-collection is possible at our Showroom, based in Ubi (nearest to MacPherson MRT). Find out where, and how to get to us here.
- and yes, you may arrange your own 3rd party logistics to pickup your purchases on your behalf.
GrabExpress, Lalamove, GoGoX, RydeSEND services are welcome.
Friends from Overseas,
- we do ship internationally.
- shipping fees will be displayed during checkout.
- do be aware of import tax/VAT that may apply.
1 Exclusions do apply. e.g. Bulky or odd sized products, products with gross weight 20kg and above, ex-demo products, products on clearance sales, orders that require installation/calibration, etc. We reserve the right to amend this list of exclusions at any time.
No Reviews Available Yet. Leave Your Review
