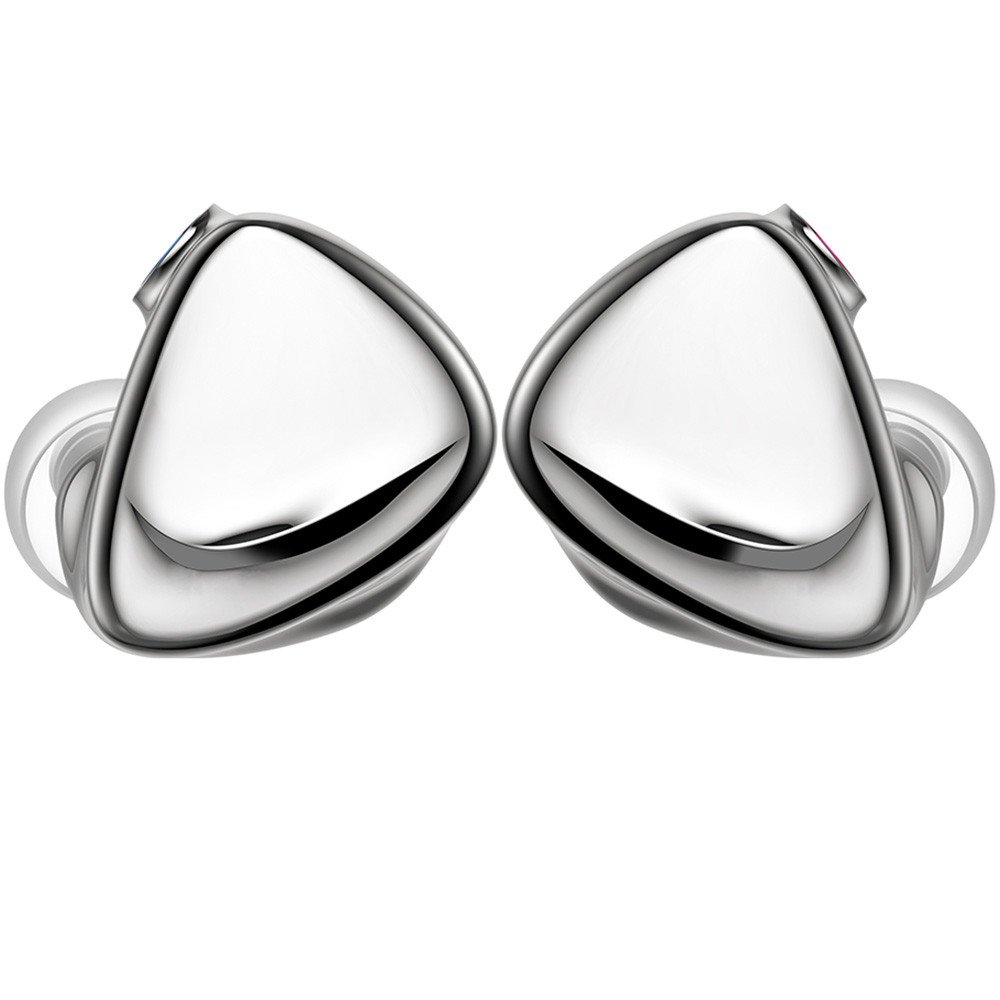

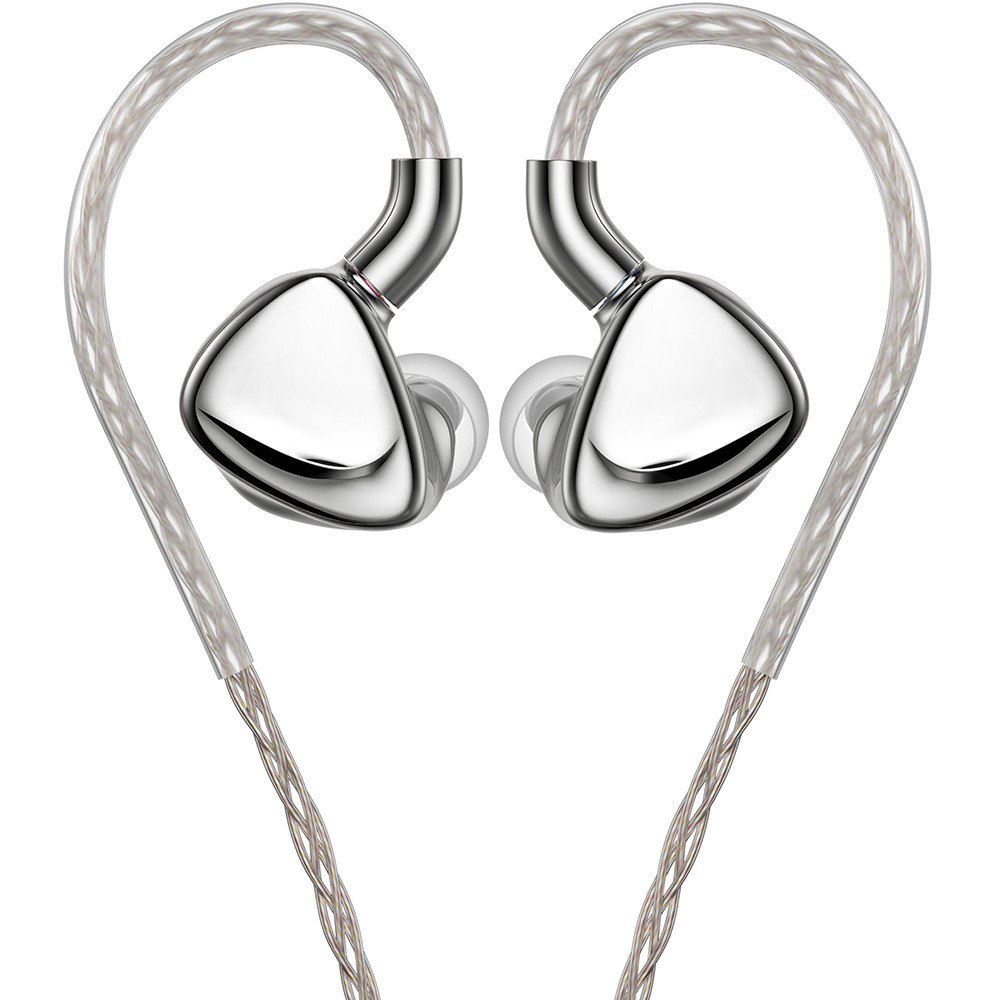

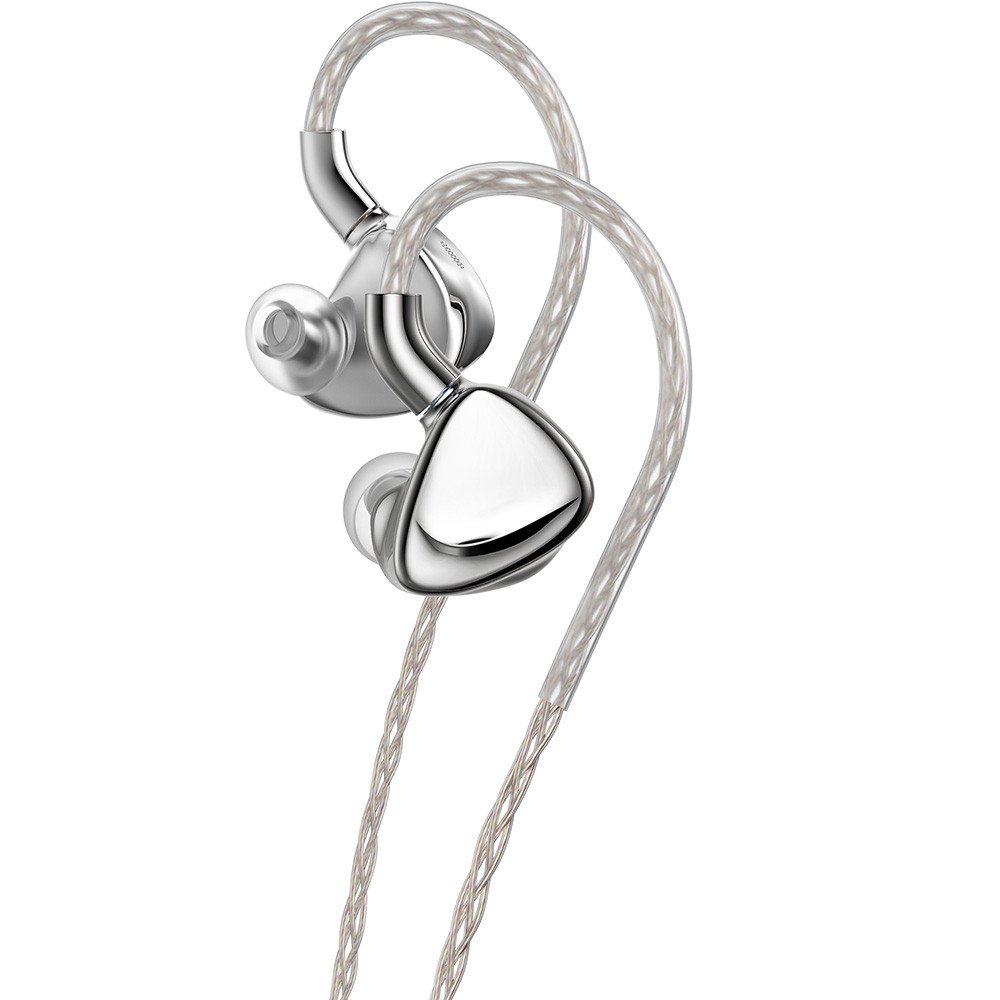

FiiO FX17 13-Driver (8EST+4BA+1DD) Tribrid In-Ear Earphone

1 DD 4 BA 8 EST design per side.
To get the best sound quality possible, the FX17 features a design of one dynamic driver, four balanced armature drivers, and eight electrostatic drivers per side. A five-way crossover has been precisely tuned to balance energy distribution among the driver and ensures each unit operates in its optimal state, resulting in a grander soundstage and more natural sound.

Eight electrostatic drivers with a truly airy feeling.
Electrostatic drivers have exceptional high-frequency extension easily reaching 50kHz and sense of air that gives the listener a grander soundstage. Their downside is that their sensitivity is only 99dB/mW, which is low compared to the 110dB/mW sensitivity typically found in balanced armature and dynamic drivers - leading to the 'masking effect.' Thus, the FX17 uses 8 electrostatic units to increase sound pressure levels in order to make the electrostatic drivers more audibly perceptible as they handle the high and ultra-high frequencies above 6kHz, rather than just be for decoration.

Four custom Knowles BA drivers.
The FIIO FX17 uses two Knowles balanced armature driver composite units that handle the mid and high-frequency sounds. Each of the composite balanced armature driver units is divided into two parts, one part responsible for mids and the other for mid-high frequency – leading to denser mids and a more transparent sound and allows them to transition seamlessly into the electrostatic drivers. To achieve higher flagship-level vocal performance, FIIO, in collaboration with Knowles, custom-developed a 'Midrange Enhanced Balanced Armature Unit.' Acoustic vents have been added to the rear cavity of the balanced armature, which provide more sound energy reserves for the mid-frequency balanced armature unit to further tap into the driver’s advantages. The overall result is lush, mellow vocals that make the singer’s alluring voice seem as if it's truly right next to you.

Lithium-magnesium alloy diaphragm dynamic driver.
Lithium-magnesium alloy is lightweight, rigid, and has a density of 1.6g/cm³ - making it an ideal material second only to beryllium for a dynamic driver diaphragm. When reproducing high-frequency signals with rapid vibrations, the lithium-magnesium alloy diaphragm has excellent mechanical properties thanks to its high internal damping – leading to significantly reduced intrinsic frequency resonance and distortion. It allows distortion to not exceed 0.2%, for a truly clean sound.

Pure titanium construction.
The FX17 features a minimalist aesthetic, with a classic and natural curved cavity. The FX17’s shell ear shell cavity is made of high-density, high-strength titanium that is precisely milled from a single block and meticulously hand-polished. It is treated with vapor deposition which hardens the surface and gives it a lustrous finish, making for a beautiful display of light and shadow intertwined.

Exclusive serialized nameplate.
Each FX17 comes with an exclusive serialized commemorative nameplate, engraved for a truly special auditory memory. Together we witness eighteen years of accumulated acoustic essence.
