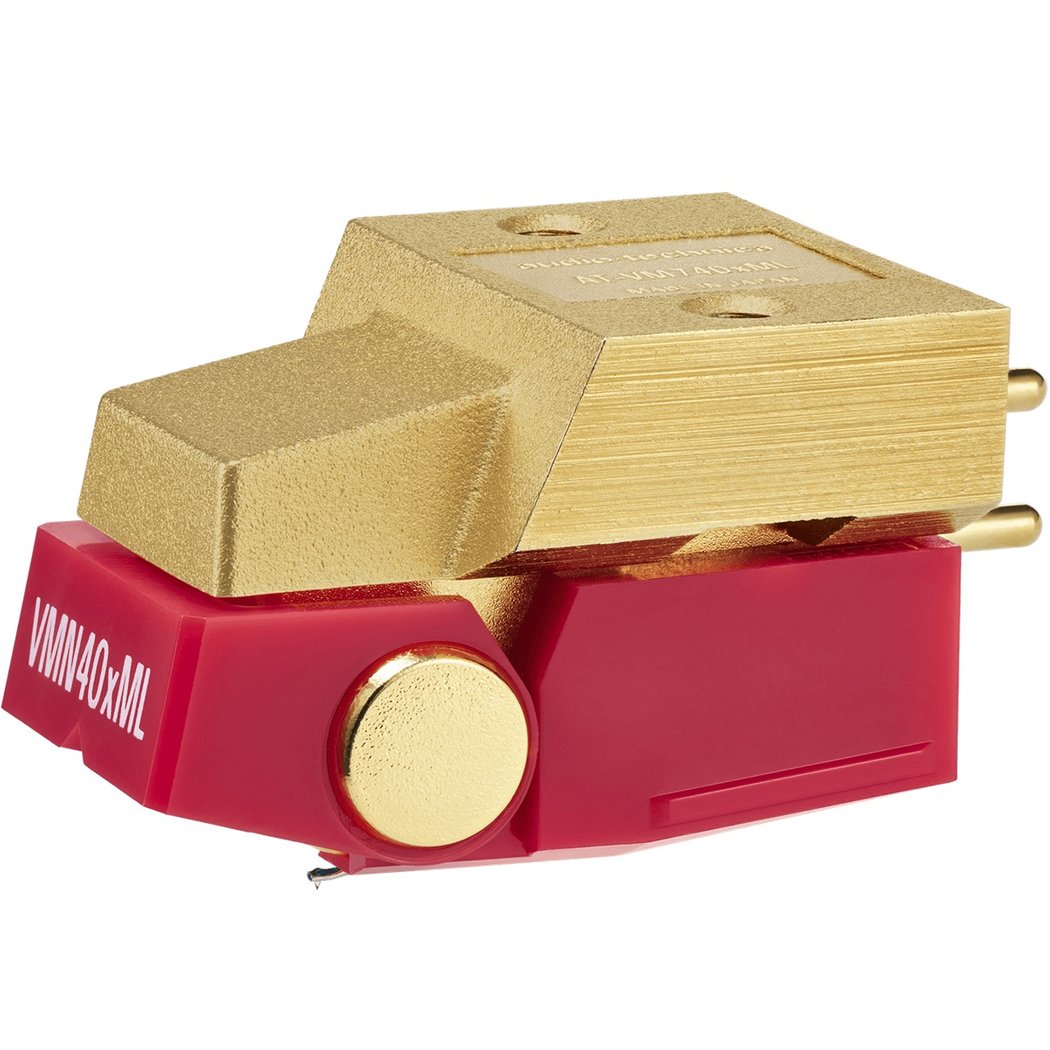

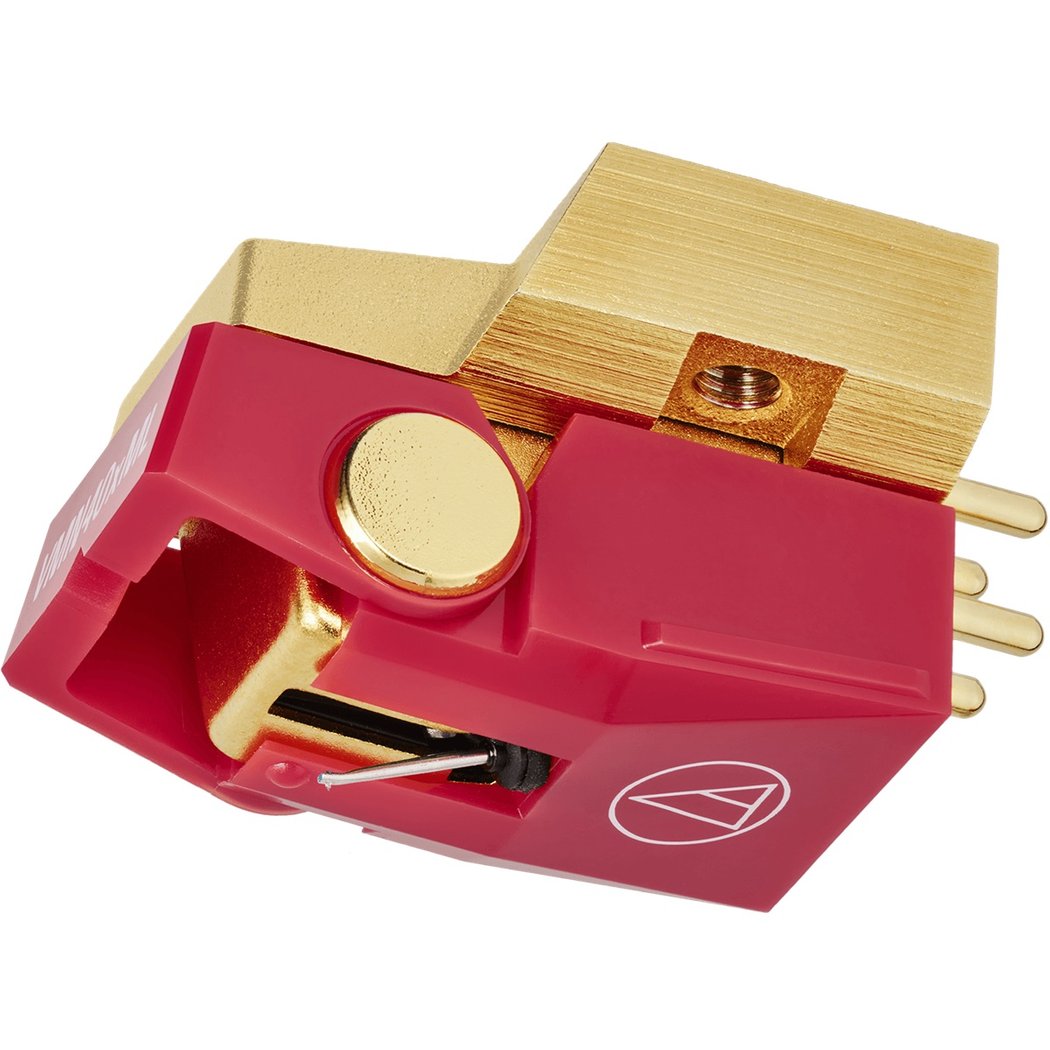

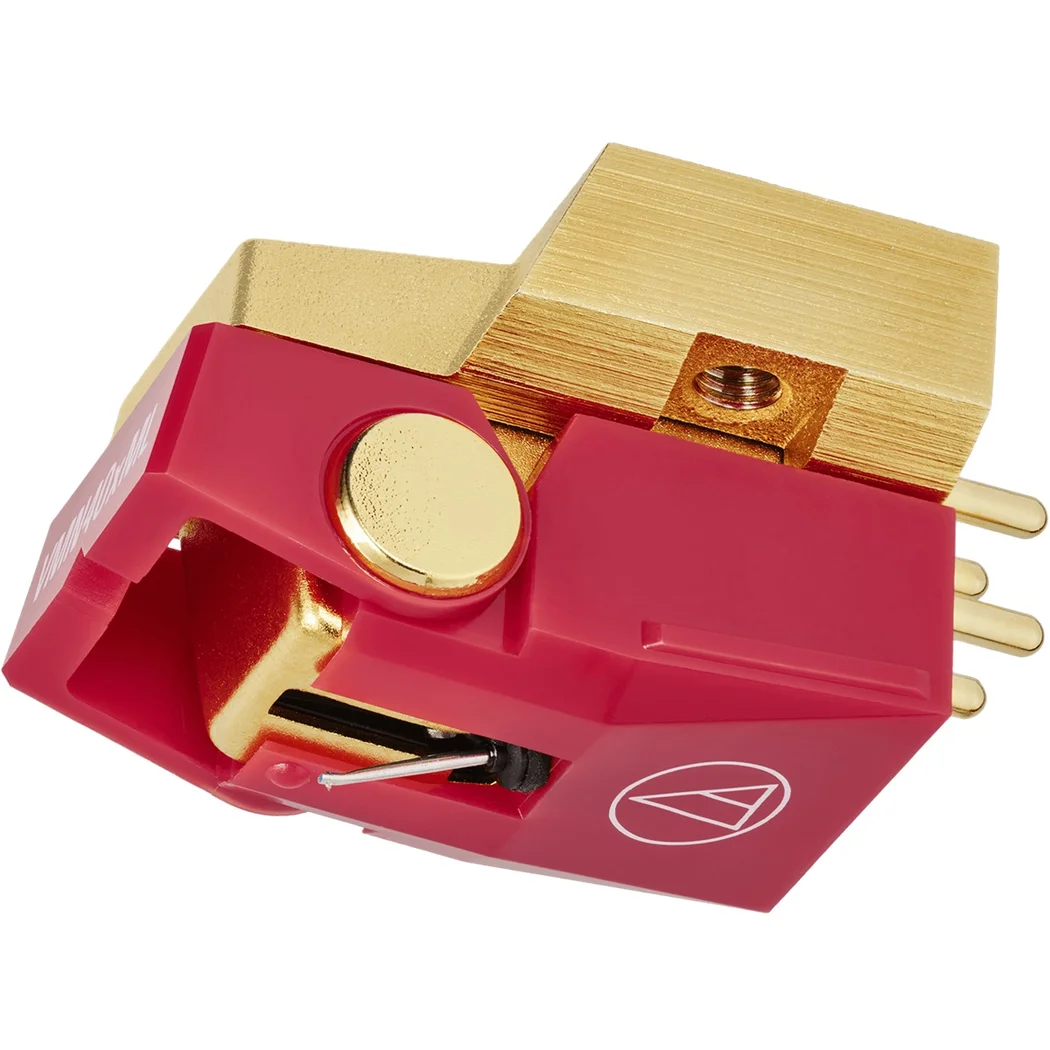

Audio-Technica AT-VM740xML VM / VMx Series Microlinear Dual Moving Magnet (MM) Phono Cartridge

S$329.00 S$309.00
Why You Should Get It
  • AT-VMx dual moving magnet cartridge with microlinear stylus

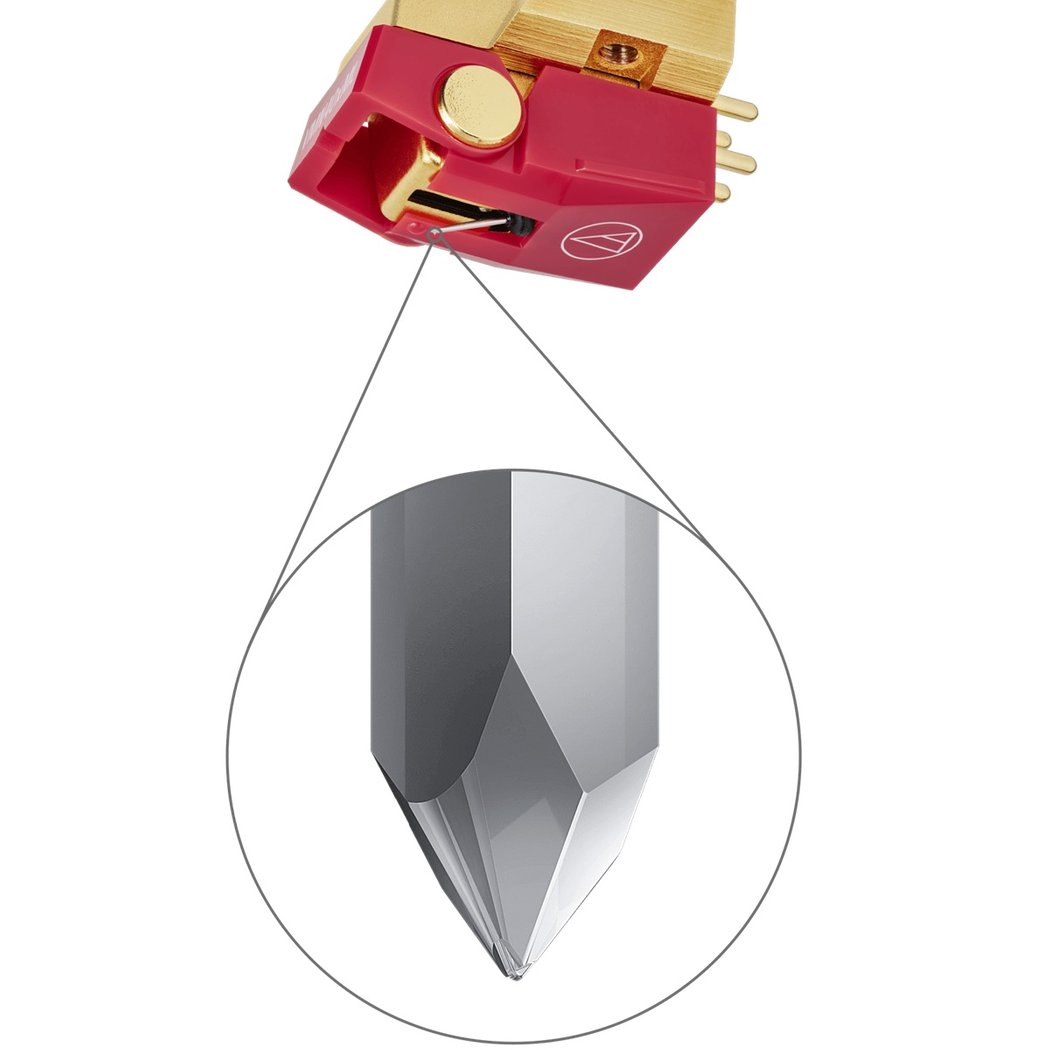

  • Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
  • Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
  • Centre shield plate between the left and right channels reduces crosstalk for clear stereo sound
  • Die-cast aluminium housing reduces vibrations and resonance

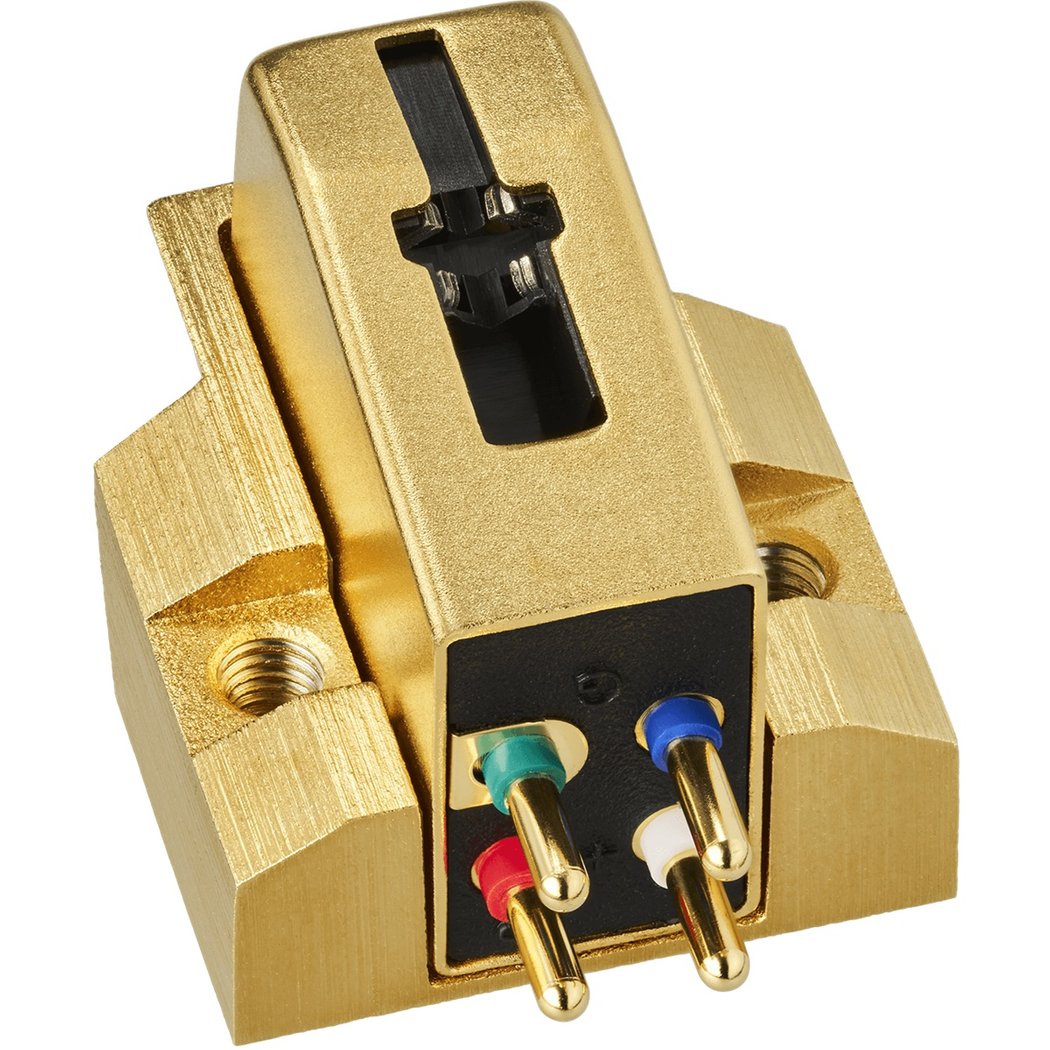

  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms
  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
  • Aluminium tapered cantilever reduces mass near the stylus tip for quicker signal transmission
  • Compatible with any turntable headshell that accepts 1/2" cartridges
  • Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application

*Excludes mono models

Warranty
- Warranty Not Applicable -
In The Box

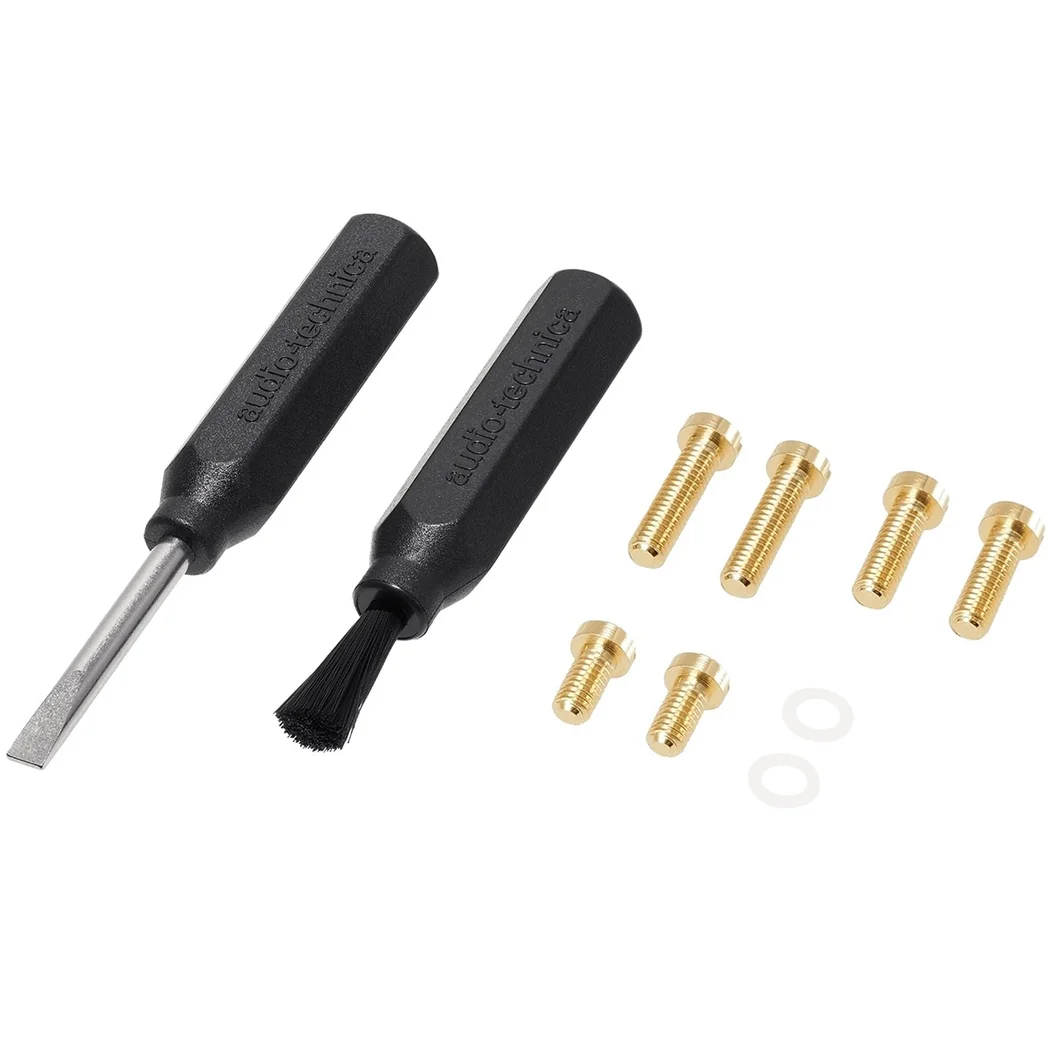

  • AT-VM740xML cartridge
  • Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2)
  • Washer × 2
  • Non-magnetic screwdriver
  • Brush

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.

Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilises two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Audio-Technica AT-VM740xML Microlinear MM Phono Cartridge

/ Convenience Upgrades

Easy to Install & Use

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Easy to Install

/ Premium PCUHD (Pure Copper Ultra High Drawability) Coils

Highly Efficient Generator

/ AT-VMx Premium Models

Solid Baron Cantilever and Metal Body

/ Flexibility to Upgrade

Interchangeable Styli

Product Availability Available (current model)
Product Type Turntable Parts - Phono Cartridge
Connectivity Fully Wired
Cartridge AT-VMx
Frequency Response (Hz) 20 to 25,000 Hz
Product Dimensions 29.0 × 18.3 × 17.5mm (H × W × D)
Product Weight (g) 8.8g (0.31 oz)
Additional Tech Specs
  • Type: VM Stereo Dual Magnet
  • Channel Separation: 25 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Tracking Force: 1.8 to 2.2 g (2.0 g standard)
  • Stylus Construction: Nude Microlinear
  • Recommended Load Impedance: 47 k ohms
  • Coil Impedance: 3.2 k ohms (1 kHz)
  • DC Resistance: 750 ohms
  • Coil Inductance: 480 mH (1 kHz)
  • Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
  • Output Balance: 1.0 dB (1 kHz)
  • Cantilever: Aluminium tapered pipe
  • Static Compliance: 20 × 10-6 cm/dyne
  • Dynamic Compliance: 7 × 10-6 cm/dyne (100 Hz)
  • Threaded Hole: M2.6 × 2
  • Recommended Load Capacitance: 150 to 250 pF
  • Replacement Stylus: AT-VMN40xML* (sold separately)
  • Stylus Curvature Radius: 2.2 × 0.12 mil
  • Type: VM
Colour Gold, Red
Package Contents
  • AT-VM740xML cartridge
  • Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2)
  • Washer × 2
  • Non-magnetic screwdriver
  • Brush
Warranty - Warranty Not Applicable -

If you're based in Singapore

  • spend $300 or more for free doorstep delivery1.
    ($250 for Silver/Gold/Platinum VIP members)
  • add a few more bucks, for delivery during the night/weekend, or quicker prioritised delivery options2.
  • self-collection is possible at our Showroom, based in Ubi (nearest to MacPherson MRT). Find out where, and how to get to us here.
  • and yes, you may arrange your own 3rd party logistics to pickup your purchases on your behalf.
    GrabExpress, Lalamove, GoGoX, RydeSEND services are welcome.

View additional Terms & Conditions associated to local doorstep delivery service.






Friends from Overseas

  • we do ship internationally.
  • shipping fees are calculated according to total gross actual or volumetric weight of all item(s) in cart, whichever higher.
  • shipping fees will vary depending on international carrier(s)3, and will be displayed during checkout.
  • do be aware of additional import tax/VAT that may apply.



View additional Terms & Conditions associated to international door to door shipping service.





Terms and condition do apply for free delivery. For more information, click here to view.
View our updated list of local delivery options.
View our updated list of international carriers.

No Reviews Available Yet. Leave Your Review

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.

Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilises two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Audio-Technica AT-VM740xML Microlinear MM Phono Cartridge

/ Convenience Upgrades

Easy to Install & Use

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Easy to Install

/ Premium PCUHD (Pure Copper Ultra High Drawability) Coils

Highly Efficient Generator

/ AT-VMx Premium Models

Solid Baron Cantilever and Metal Body

/ Flexibility to Upgrade

Interchangeable Styli

Product Availability Available (current model)
Product Type Turntable Parts - Phono Cartridge
Connectivity Fully Wired
Cartridge AT-VMx
Frequency Response (Hz) 20 to 25,000 Hz
Product Dimensions 29.0 × 18.3 × 17.5mm (H × W × D)
Product Weight (g) 8.8g (0.31 oz)
Additional Tech Specs
  • Type: VM Stereo Dual Magnet
  • Channel Separation: 25 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Tracking Force: 1.8 to 2.2 g (2.0 g standard)
  • Stylus Construction: Nude Microlinear
  • Recommended Load Impedance: 47 k ohms
  • Coil Impedance: 3.2 k ohms (1 kHz)
  • DC Resistance: 750 ohms
  • Coil Inductance: 480 mH (1 kHz)
  • Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
  • Output Balance: 1.0 dB (1 kHz)
  • Cantilever: Aluminium tapered pipe
  • Static Compliance: 20 × 10-6 cm/dyne
  • Dynamic Compliance: 7 × 10-6 cm/dyne (100 Hz)
  • Threaded Hole: M2.6 × 2
  • Recommended Load Capacitance: 150 to 250 pF
  • Replacement Stylus: AT-VMN40xML* (sold separately)
  • Stylus Curvature Radius: 2.2 × 0.12 mil
  • Type: VM
Colour Gold, Red
Package Contents
  • AT-VM740xML cartridge
  • Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2)
  • Washer × 2
  • Non-magnetic screwdriver
  • Brush
Warranty - Warranty Not Applicable -
