SVS 3000 Micro R|Evolution Dual 9-inch (2x9") Powered Subwoofer - Piano Gloss White

The challenge of a truly compact subwoofer has always been balancing size with performance. Traditional micro designs sacrifice output, control, and musical accuracy in pursuit of a room-friendly enclosure, depriving users of a true subwoofer experience. The 3000 Micro R|Evolution changes that.

Drawing from the flagship SVS subwoofer platform, 3000 Micro R|Evolution represents a complete reimagining of compact subwoofer design—delivering deeper extension, greater output, and dramatically improved musicality from a beautifully compact enclosure.

Owing to the advancements in driver, amplifier, and DSP technology, the 3000 Micro R|Evolution energizes a room with authority while preserving the nuance, texture, and tonal accuracy demanded by serious music listeners and home theater fans. All while providing advanced tuning options and an unrivaled user experience.

Force-Balanced Dual Opposing Active 9-inch Drivers – Massive Output with Musical Refinement.
The beating heart of the 3000 Micro R|Evolution is a pair of active, side-firing 9-inch high-excursion drivers that operate in perfect unison, acoustically and electrically in parallel to generate powerful, controlled low frequencies. By firing in opposite directions, the mechanical forces cancel, creating a sonically inert cabinet and eliminating unwanted vibration—one of the biggest limitations of compact subwoofers. Each high-excursion active 9-inch driver employs a progressive inverted surround to ensure maximum linear displacement. This is imperative for moving massive amounts of air and generating sound pressure levels you can feel at the deepest frequencies from such a small enclosure. Advanced materials, precision motor design, and optimized suspension components ensure linearity and accuracy even at maximum excursion.

Precisely tuned overhung motor
configuration for unerring woofer control at all drive levels o 27.3mm Xmax, 32.6mm Xmech precision aligned excursion

High-current 4-layer copper voice coil winding
minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.

Powerful oversized Y30 ferrite motor system
generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.

Custom 9” baskets
with FEA optimized powder-coated steel frames for maximum rigidity, thermal conductivity, and mechanical damping

Power with Control. STA-1200D2M MOSFET Amplifier.
Conservatively rated at 1,200 watts Continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximizes the dual 9-inch active drivers full potential with effortless power and absolute control. The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through fully discrete MOSFETs, delivering outstanding real-world subwoofer performance at all drive levels.

High Current MOSFET Output with Class-D Efficiency
allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the dual active 9” drivers to fully maximize on their potential with reference output, while maintaining control and accuracy.

Performance Enhancing SVS Switch Mode Power Supply
maximizes system performance under all operating conditions by ensuring a consistent 160V rail voltage for the amplifier. Digital monitoring of the AC input mains voltage tunes the power supply for optimal performance in any environment.

Premium Grade 56bit Digital Audio Processing
and premium DACs (Digital-to-Analog Converters) provide greater headroom, lower noise, and flawless fidelity.

Balanced XLR Input
for pristine audiophile performance and long-distance cable runs. Compatible with consumer and pro audio systems.

The Brains Behind the Brawn. 295 MHz Analog Devices DSP.
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer, with five times the processing power of previous generations. DSP plays a role in all aspects of performance, user control, tuning, and in making the 3000 Micro R|Evolution subwoofer sound bigger than it is. SVS engineers painstakingly crafted an in-room frequency response curve that fully maximizes the potential of a room’s boundaries to produce greater output and deeper bass extension without distortion or boominess.

Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction and acoustically tuned room gain

Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output

Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency

Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

SVS Subwoofer Control Smartphone App
Convenient subwoofer tuning and control from your room’s sweet spot. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.

Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.

Three memory presets to save system settings matched to your listening preferences – music, movies, night mode, and more.

SVS Auto Room EQ for optimal in-room performance. Coming soon!

Acoustically Inert, Rigidly Braced Sealed Cabinet Design
Handsomely styled to complement the finest home theater and HiFi systems, yet compact enough to place out of sight, the acoustically optimized 3000 Micro R|Evolution sealed cabinet is designed for both performance and aesthetics.

Rigid MDF front baffle and internal support massive drive unit and ensure an acoustically inert environment.

Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet at all playback levels

Protective non-resonant perforated metal grilles shield drivers to prevent damage while ensuring longevity

Custom elastomer feet reduce noise artifacts within a room.

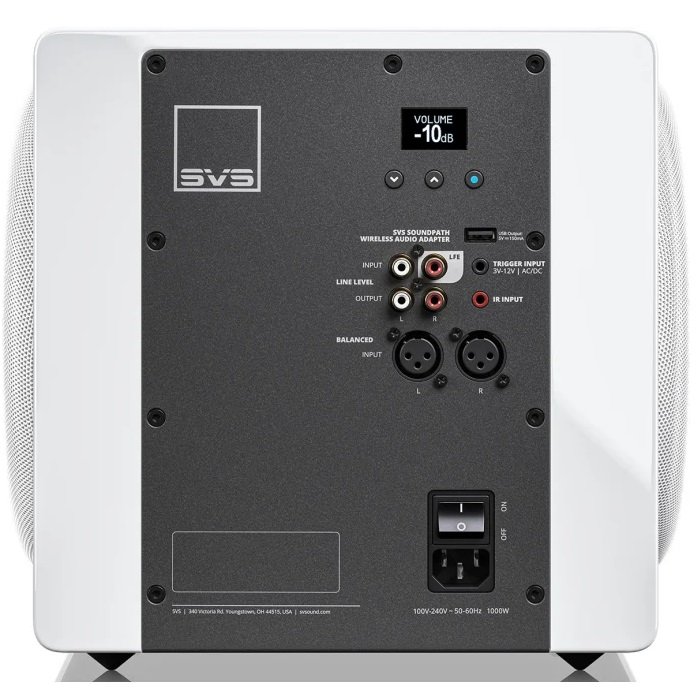

Rear Panel OLED and Control Interface provide fast and direct control of the most important features. Includes a convenient “Display Flip” function.
