Audinst HUD-DX1 Desktop Headphone Amplifier & USB DAC - Black

S$699.00
Why You Should Get It
  • Audinst's Flagship USB DAC & Headphone Amplifier
  • Native DSD/DXD Playback (DSD64/128 & DXD 24bit 352.8 kHz ~ 32bit 384 kHz)
  • ESS Sabre Reference Class ES9018K2M DAC
  • High Performance TPA6120A2 & MUSE8920 OP-Amp for Amplifier Circuitry (Up to 600ohms)
  • High End XMOS Audio Controller Chip, TCXO & Low Noise Regulators
  • Runs on Genuine Thesycon Drivers to Achieve High Fidelity & Stable DSD Playback
  • Ultra Compact & Runs off USB Power (Adaptor is needed for higher output power)
  • Digital Optical/USB Inputs & 6.35mm/3.5mm Headphone & RCA Line Outputs
Warranty
2 years (local)
In The Box
HUD-DX1, USB cable (USB A to B Type, 1.5M), User's Manual (including warranty card), 4 spikes for fixing (to attach the main body to the floor), L-wrench (to attach and detach the volume knob), Power adaptor (DC 12V~15V)

HUD-DX1 allows its users to enjoy high-level Hi-Fi sound world by supporting replay of high-quality DSD sound source (2.8/5.6MHz) in native mode using USB bus power alone, DXD sound source (352.8/384kHz), another high-quality sound format, as well as optical input (24bit 192kHz) and MQS (Mastering Quality Sound, 96~192kHz), Hi-Fi sound source, without any loss rendered in studio recording specification. HUD-DX1 also allows its users to enjoy sounds with even higher output and high-quality sound when additionally connecting to the adaptor provided together.

Luxurious Black and Neat White color
You can meet two colors of HUD-DX1. Black color shows luxurious and stable shape with the assembly of gold volume knob and spike, while white color shows neat and sophisticated shape with the assembly of silver knob and spike.





Playback of Native DSD
Equipped with the newest USB 2.0 high speed audio controller from XMOS and ES9018K2M, a high performance DAC from ESS, it supports playback of Native DSD (DSD64 / DSD128) as it plays back sounds in excellent definition and Hi-Fi audio quality.

Additionally supports playback of 32-bit/384 kHz DXD sound source and optical input
Since HUD-DX1 is designed to support not only the playback of DXD sounds in 24-bit/352.8 kHz format, but also to support optical input functions that are not supported by products from other companies. It allows users to convert a maximum 24-bit/192 kHz PCM digital signal into a high quality analog sound output and play it back.





Top class OPAMP and high performance headphone amp
Adopting the MUSES series OPAMP, a top class one specifically designed for Hi-Fi audio products by NJRC, HUD-DX1 uses MUSE8920 for its I/V converter and filter circuits for excellent matching in sound quality and optimum constitution that realizes high performance and high fidelity audio with top class sound balance and very low distortion, as well as ultra-low noise. Also equipped with TPA6120A2, a high fidelity headphone amplifier from TI, it easily operates a headphone under 300 Ω in factory default mode and allows users to enjoy sounds with enough volume, even when using a 600 Ω high impedance headphone by removing jumper caps (JP1, JP2) set for headphone output gain.

Convenient Portability and Compatibility
Typical hi-fi DAC is inconvenient to carry around due to its large size, yet USB DAC has the advantage of being small and lightweight for the purpose of using it connected to the computer. As the unit gets smaller, the function of DAC reaches its limit and sacrifices with low quality audio sound. Our HUD-mx2 has overcome such limit to the maximum, developing ultra lightweight, compact DAC with reduced drop-off in audio quality. You can enjoy the music with highest quality possible audio sound wherever the computer is and, with its plug and play function.

Adopts genuine Thesycon driver
We adopted the driver from Thesycon, a German system software development company, by licensing to offer 100% functionality of high sound quality of Native DSD and stable audio playback. The Thesycon driver can be downloaded from the data center of the AUDINST website. Users can download it to an Internet-capable computer.

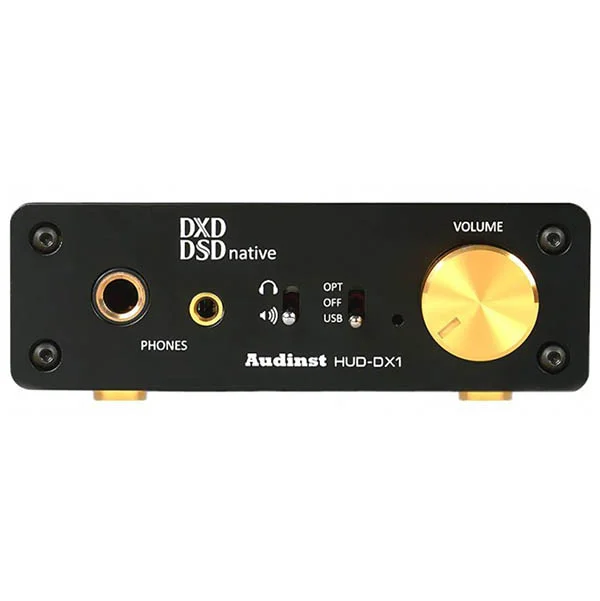

Front Panel

① & ② Headphone/Earphone Output (6.35Ø Stereo Phone Jack / 3.5Ø Stereo Mini Jack)
③ Output Selection Switch (briefly “Output Switch”, Output Toggle Switch)
④ Input selection and off switch (briefly “Input switch”, Input toggle & off switch)
⑤ Active Indicator
⑥ Potentiometer

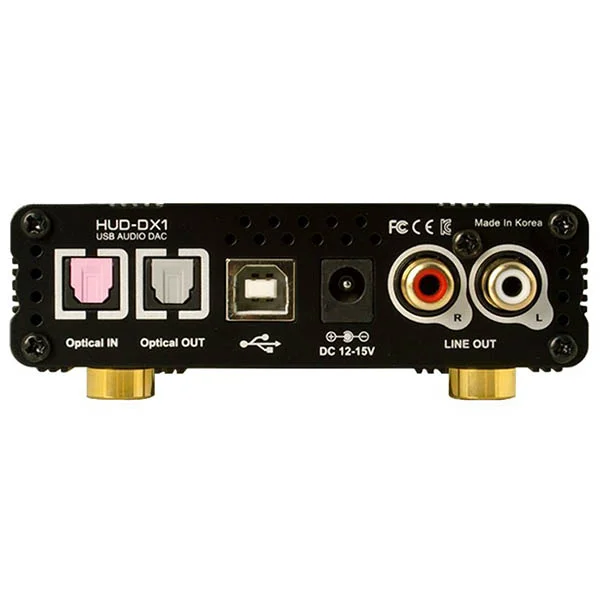

Rear Panel

⑦ Optical IN (S/PDIF Optical Input, Pink Shutter)
⑧ Optical OUT (S/PDIF output, Grey Shutter)
⑨ USB Port
⑩ Power Jack (DC Jack)
⑪ RCA Line Out

Product Availability Discontinued
Product Type Amplifier (Headphone), DAC (Digital-Analog Converter)
Style/Type Desktop
Features DSD, Line-out, Optical Input
Total Harmonic Distortion (THD) THD+N : -120dB
Max Output Power (mW / W) 1.5W @ 32Ω
Microphone None
Input Connectivity Options Optical, USB
Output Connectivity Options 3.5mm Stereo, 6.35mm Stereo
Colour Black
Product Weight (g) 300
Warranty 2 years (local)
Package Contents HUD-DX1, USB cable (USB A to B Type, 1.5M), User's Manual (including warranty card), 4 spikes for fixing (to attach the main body to the floor), L-wrench (to attach and detach the volume knob), Power adaptor (DC 12V~15V)
Additional Tech Specs

Dimensions / Weight
104(mm) x 120(mm) x 34(mm) / 300g

Headphone Output
Type : 6.35mm Stereo phone jack / 3.5mm Stereo mini 4-pole jack
Max Out Level : ±10Vpp@600Ω(When removing the gain Jumper)
Max Output Power : 1.5W @ 32Ω
Output Impedance : 2Ω (Load : 16Ω ~ 600Ω)

Line Output
Type : Unbalanced RCA
Level : ±3.2Vpp max
Impedance : 200Ω

USB Audio
Type : Max 32bit 384kHz, USB 2.0 High-Speed
OS Support : Windows 7 / 8 / 8.1/ 10, Mac OS X Compatible

DSD Playback
Native DSD Support : DSD64 (2.8 MHz) / DSD128 (5.6 MHz)

DXD Playback
DXD Support : DXD 24bit 352.8 kHz ~ 32bit 384 kHz

PCM Playback
Bit depth : 16 / 24 / 32-bit
Sample rate : 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Digital Input / Output(PCM Only)
Type : S/PDIF Optical on TOS-LINK 44.1~192kHz
Format : IEC-60958, S/PDIF Compatible
Sample rate Detection : 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

D/A Converter
Type : 32-bit Hyperstream Reference Stereo DAC
DNR : 127dB
THD+N : -120dB

OPAMP
Operating Voltage : ±12V(with DC Adapter), ±5V(USB Bus Power)
I/V Converter : MUSES8920E (SMD x 2)
Differential Amplifier : MUSES8920 (DIP)
Line Out : MUSES8920 (DIP)
Headphone Out : TPA6120A2 (SMD)

Power Supply
DC 12V ~ 15V



If you're based in Singapore

  • spend $300 or more for free doorstep courier delivery1.
  • add a few more bucks, for an even quicker prioritised delivery.
  • self-collection is possible at our Showroom, based in Ubi (nearest to MacPherson MRT). Find out where, and how to get to us here.
  • and yes, you may arrange your own 3rd party logistics to pickup your purchases on your behalf.
    GrabExpress, Lalamove, GoGoX, RydeSEND services are welcome.






Friends from Overseas,

  • we do ship internationally.
  • shipping fees will be displayed during checkout.
  • do be aware of import tax/VAT that may apply.



Exclusions do apply. e.g. Bulky or odd sized products, products with gross weight 20kg and above, ex-demo products, products on clearance sales, orders that require installation/calibration, etc. We reserve the right to amend this list of exclusions at any time.

No Reviews Available Yet. Leave Your Review

HUD-DX1 allows its users to enjoy high-level Hi-Fi sound world by supporting replay of high-quality DSD sound source (2.8/5.6MHz) in native mode using USB bus power alone, DXD sound source (352.8/384kHz), another high-quality sound format, as well as optical input (24bit 192kHz) and MQS (Mastering Quality Sound, 96~192kHz), Hi-Fi sound source, without any loss rendered in studio recording specification. HUD-DX1 also allows its users to enjoy sounds with even higher output and high-quality sound when additionally connecting to the adaptor provided together.

Luxurious Black and Neat White color
You can meet two colors of HUD-DX1. Black color shows luxurious and stable shape with the assembly of gold volume knob and spike, while white color shows neat and sophisticated shape with the assembly of silver knob and spike.





Playback of Native DSD
Equipped with the newest USB 2.0 high speed audio controller from XMOS and ES9018K2M, a high performance DAC from ESS, it supports playback of Native DSD (DSD64 / DSD128) as it plays back sounds in excellent definition and Hi-Fi audio quality.

Additionally supports playback of 32-bit/384 kHz DXD sound source and optical input
Since HUD-DX1 is designed to support not only the playback of DXD sounds in 24-bit/352.8 kHz format, but also to support optical input functions that are not supported by products from other companies. It allows users to convert a maximum 24-bit/192 kHz PCM digital signal into a high quality analog sound output and play it back.





Top class OPAMP and high performance headphone amp
Adopting the MUSES series OPAMP, a top class one specifically designed for Hi-Fi audio products by NJRC, HUD-DX1 uses MUSE8920 for its I/V converter and filter circuits for excellent matching in sound quality and optimum constitution that realizes high performance and high fidelity audio with top class sound balance and very low distortion, as well as ultra-low noise. Also equipped with TPA6120A2, a high fidelity headphone amplifier from TI, it easily operates a headphone under 300 Ω in factory default mode and allows users to enjoy sounds with enough volume, even when using a 600 Ω high impedance headphone by removing jumper caps (JP1, JP2) set for headphone output gain.

Convenient Portability and Compatibility
Typical hi-fi DAC is inconvenient to carry around due to its large size, yet USB DAC has the advantage of being small and lightweight for the purpose of using it connected to the computer. As the unit gets smaller, the function of DAC reaches its limit and sacrifices with low quality audio sound. Our HUD-mx2 has overcome such limit to the maximum, developing ultra lightweight, compact DAC with reduced drop-off in audio quality. You can enjoy the music with highest quality possible audio sound wherever the computer is and, with its plug and play function.

Adopts genuine Thesycon driver
We adopted the driver from Thesycon, a German system software development company, by licensing to offer 100% functionality of high sound quality of Native DSD and stable audio playback. The Thesycon driver can be downloaded from the data center of the AUDINST website. Users can download it to an Internet-capable computer.

Front Panel

① & ② Headphone/Earphone Output (6.35Ø Stereo Phone Jack / 3.5Ø Stereo Mini Jack)
③ Output Selection Switch (briefly “Output Switch”, Output Toggle Switch)
④ Input selection and off switch (briefly “Input switch”, Input toggle & off switch)
⑤ Active Indicator
⑥ Potentiometer

Rear Panel

⑦ Optical IN (S/PDIF Optical Input, Pink Shutter)
⑧ Optical OUT (S/PDIF output, Grey Shutter)
⑨ USB Port
⑩ Power Jack (DC Jack)
⑪ RCA Line Out

Product Availability Discontinued
Product Type Amplifier (Headphone), DAC (Digital-Analog Converter)
Style/Type Desktop
Features DSD, Line-out, Optical Input
Total Harmonic Distortion (THD) THD+N : -120dB
Max Output Power (mW / W) 1.5W @ 32Ω
Microphone None
Input Connectivity Options Optical, USB
Output Connectivity Options 3.5mm Stereo, 6.35mm Stereo
Colour Black
Product Weight (g) 300
Warranty 2 years (local)
Package Contents HUD-DX1, USB cable (USB A to B Type, 1.5M), User's Manual (including warranty card), 4 spikes for fixing (to attach the main body to the floor), L-wrench (to attach and detach the volume knob), Power adaptor (DC 12V~15V)
Additional Tech Specs

Dimensions / Weight
104(mm) x 120(mm) x 34(mm) / 300g

Headphone Output
Type : 6.35mm Stereo phone jack / 3.5mm Stereo mini 4-pole jack
Max Out Level : ±10Vpp@600Ω(When removing the gain Jumper)
Max Output Power : 1.5W @ 32Ω
Output Impedance : 2Ω (Load : 16Ω ~ 600Ω)

Line Output
Type : Unbalanced RCA
Level : ±3.2Vpp max
Impedance : 200Ω

USB Audio
Type : Max 32bit 384kHz, USB 2.0 High-Speed
OS Support : Windows 7 / 8 / 8.1/ 10, Mac OS X Compatible

DSD Playback
Native DSD Support : DSD64 (2.8 MHz) / DSD128 (5.6 MHz)

DXD Playback
DXD Support : DXD 24bit 352.8 kHz ~ 32bit 384 kHz

PCM Playback
Bit depth : 16 / 24 / 32-bit
Sample rate : 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

Digital Input / Output(PCM Only)
Type : S/PDIF Optical on TOS-LINK 44.1~192kHz
Format : IEC-60958, S/PDIF Compatible
Sample rate Detection : 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz

D/A Converter
Type : 32-bit Hyperstream Reference Stereo DAC
DNR : 127dB
THD+N : -120dB

OPAMP
Operating Voltage : ±12V(with DC Adapter), ±5V(USB Bus Power)
I/V Converter : MUSES8920E (SMD x 2)
Differential Amplifier : MUSES8920 (DIP)
Line Out : MUSES8920 (DIP)
Headphone Out : TPA6120A2 (SMD)

Power Supply
DC 12V ~ 15V
